ID
1331034
$ 257.22
1-2 weeks delivery time
-
+
The Johnson Pump AirV 80-47420-02 heavy-duty radial blower delivers continuous-duty ventilation for pre-start engine compartment use and for air intake or extraction in bilges, galleys, accommodation spaces, and other compartments. It runs on 24V power (7A) and provides 550 m³/h airflow, using a flex-mount flat-base design with multiple mounting holes for adaptable installation. Built for marine conditions with an ignition-protected double ball-bearing motor and a stainless steel shaft, it is specified for metric hoses with inlet/outlet sizes listed as 110 mm and 103 mm, and also shown as 100 mm and 110 mm in additional product data.
- Description
- Ask a Question
-

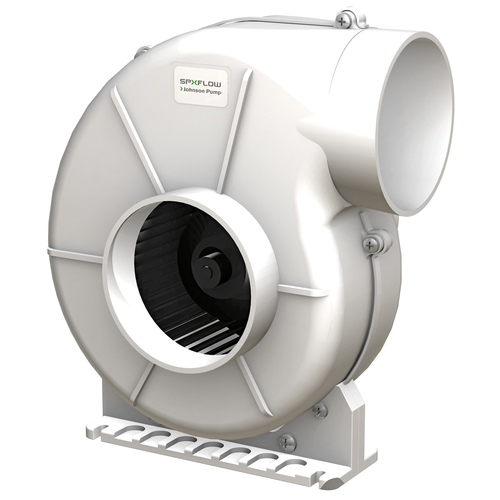

Johnson Pump AirV 80-47420-02 Heavy-Duty 24V Radial Ventilation Unit
The Johnson Pump 80-47420-02 AirV extra heavy duty radial blower is engineered for marine ventilation, especially for engine compartment ventilation before starting. Designed for continuous duty, it supports both air intake and air extraction across multiple onboard spaces.
Application
- Pre-start engine compartment ventilation
- Engine rooms
- Bilges
- Galleys
- Accommodation spaces
- Other compartments
Technical Specifications
Brand Johnson Pump Part Number 80-47420-02 Article Number 66804742002 Model AirV 4-550, Flex Mount EAN 8719182080329 Power Supply 24 V (7 A) Capacity 550 m³/h Duty Rating Continuous duty Ignition Protected Yes Standards (Listed) ISO 9097; ISO 8846; ISO 10133; EN 55019; ISO 8846:1990 Compliance (Listed) N.M.M.A.; USCG 183.415; USCG 183.410 Dimensions (Listed) 290 x 257 x 150 mm; 296 x 257 x 161 mm (H x W x L) Dimensions (Listed, Imperial) 11.61 x 10.08 x 6.61 in Inlet Diameter (Listed) 110 mm (4.33 in); 100 mm (4 in); 150 mm Outlet Diameter (Listed) 103 mm (4.06 in); 110 mm (4.33 in) Hose Sizing Metric hoses (user supplied) Shipping Weight (Listed) 0.40 kg
Product Details
- Mounting concept: Flex mount (flat base) with multiple mounting holes; also described as foot mounting with connection to a flexible hose
- Construction: High-impact anti-shock ABS body (as listed)
- Housing (AirV range description): Anti-shock ABS housing on AirV 3 and nylon, fiberglass-reinforced housing on AirV 4
- Shaft: Stainless steel
- Motor: Double ball-bearing motor designed for continuous operation
- Mounting style (listed): Flange and hose mounted design; flange mounting
Features
- Supports air supply or exhaust across multiple marine compartments
- Continuous-duty operation for demanding ventilation tasks
- Ignition-protected design for marine applications (standards listed in specifications)
- Flex-mount installation approach for adaptable mounting options
-
