ID
1330961
$ 478.34
1-2 weeks delivery time
-
+
The Johnson Pump 10-24690-01 Ultra Ballast F4B-11 impeller pump delivers fast, reversible filling and draining of ballast tanks with 12V DC operation and output listed up to 54 L/min. It is suitable for pumping fresh water or sea water and is built for tough continuous use, with a built-in thermal overload to help protect the motor. A bronze housing, lip seal, and 1" hose / 1/2" BSP connections support durable installation, and the unit is specified as self-priming up to 4 m under perfect conditions with a maximum head not exceeding 6 m.
- Description
- Ask a Question
-

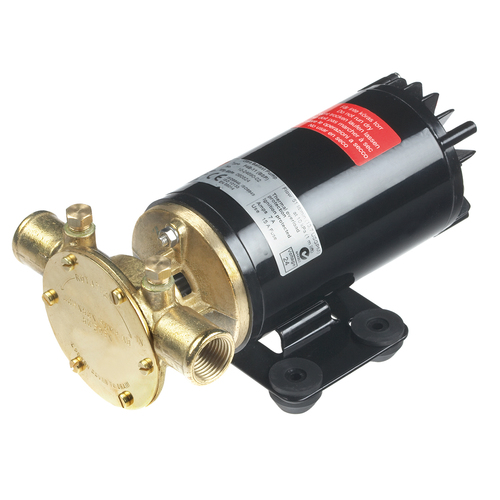

Johnson Pump 10-24690-01 Ultra Ballast F4B-11 Reversible Impeller Unit
The Johnson Pump Ultra Ballast F4B-11 is a self-priming, reversible impeller pump built to quickly fill or drain ballast tanks. Designed for demanding, continuous-duty use, it can pump fresh water or sea water and includes a built-in thermal overload for additional protection. Important: for use with water only.
Application
- Quickly fills ballast tanks
- Reversible operation to drain ballast tanks
- Suitable for fresh water and sea water
- For use with water only
Technical Specifications
Brand Johnson Pump Part Number 10-24690-01 Model F4B-11 Ultra Ballast Voltage 12V DC Output Up to 54 L/min (free flow); capacity also listed as 52 L/min (12 GPM) Flow at Head Approx. 49 L/min at 3 m head Self-Priming Up to 4 m under perfect conditions Maximum Head Should not exceed 6 m Continuous Operation Up to max. 0.6 bar head pressure Maximum Current 24A Recommended Fuse 25A Housing Bronze Pump Head Brass Shaft Seal Lip seal Impeller 09-824P-1 (includes MC97/EPDM impeller) Connections 1" hose / 1/2" BSP; 25 mm (1") hose inner diameter directly to inlet/outlet or via R1/2" female thread (fittings not included) Dimensions (Listed) 202 mm x 120 mm x 90 mm; also listed as Height 9.0 cm / Width 12 cm / Length 20.8 cm Weight 3 kg Shipping Weight 3.50 kg Article Number 66102469001 EAN 8719182062448
Product Details
- Reversible function: supports both filling and draining operations
- Protection: built-in thermal overload
- Accessory (available): polarity reversing switch kit (Part No. 09-47196)
- Dry-running note: if there is a risk of dry running for more than 30 seconds, use a polyurethane impeller; polyurethane impeller (orange) is listed as Part No. 09-824P-2
Features
- High-performance ballast tank filling and draining
- Heavy-duty motor for long service life under heavy use
- Seawater-capable design with bronze housing and brass pump head
-
