ID
1330960
$ 490.31
1-2 weeks delivery time
-
+

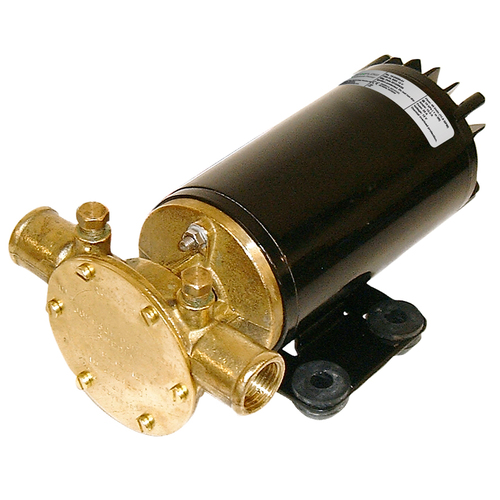

The Johnson Pump 10-24689-02 flexible impeller pump (model F4B-19) delivers self-priming fluid transfer with a 24V DC motor and output up to 48 L/min (2880 LPH). Its bronze housing, lip seal, and included oil-resistant nitrile impeller support dependable performance for bilge pumping, deck cleaning, water circulation, fire pumping, and oil and diesel refueling, while built-in thermal overload protection helps safeguard the motor during operation.
- Description
- Ask a Question
-

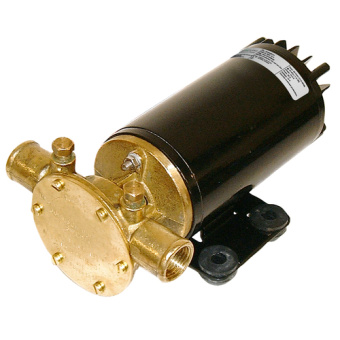

Johnson Pump 10-24689-02 F4B-19 Self-Priming Impeller Transfer Unit
The Johnson Pump F4B-19 is a compact, self-priming impeller pump powered by a 24V DC motor for efficient fluid transfer in marine and industrial use. Built for demanding tasks, it supports multiple onboard duties such as bilge pumping, deck washing, circulation, and refueling, with integrated thermal overload protection to help protect the motor.
Application
- Bilge pump applications
- Deck cleaning
- Water circulation
- Fire pump applications
- Oil refueling
- Diesel refueling
Technical Specifications
Brand Johnson Pump Model F4B-19 Voltage 24V DC Capacity 48 L/min Flow Rate (Description) 2880 LPH Flow Rate at 1 Metre Head 2700 LPH Flow Rate at 1.8 Metre Head 2670 LPH Flow Rate at 3 Metre Head 2460 LPH (also listed as approx. 41 L/min at 3 m head) Flow Rate at 6 Metre Head 2040 LPH Self-Priming Capacity Up to 4 metres (under perfect conditions) Maximum Head Should not exceed 6 metres Continuous Operation Capability Up to max. 0.6 bar head pressure Current Draw 6.5A at 0 bar and 0 feet; 7.5A at 0.6 bar and 20.1 feet (also listed as 8.8A) Fuse 8A (also listed as 15A) Connections 25mm (1") hose inner diameter; 1/2" BSP female thread; hose 1" and 1/2" BSP Seal Type Lip seal Body Material Bronze Dimensions (L x W x H) 202mm x 120mm x 90mm Weight 3 kg Shipping Weight 3.50 kg Approvals ISO 8846 Marine (Ignition); ISO 8849 Marine (Bilge Pump); ISO 10133 Small Craft (Low Voltage DC Installations) Replacement Impeller 09-824P-9 (also listed as JP-09-824P-9) Service Kit 09-46600 EAN 8719182062448 Article Number 66102468902
Product Details
- Self-priming, flexible impeller pump with 24V DC motor
- Includes a nitrile impeller (listed as oil resistant)
- Motor includes built-in protection against thermal overload
- Connections support direct 25mm (1") hose fitment or use via 1/2" BSP female thread (fittings not included)
- Pump head is listed as brass, with a bronze body/housing
Features
- High output: up to 48 L/min free flow for fast transfer
- Self-priming capability: up to 4 m under perfect conditions
- Protection built in: thermal overload protection for the motor
- Marine-ready compliance: listed ISO marine approvals for ignition, bilge pump use, and DC installations
-
