ID
1330959
$ 490.31
1-2 weeks delivery time
-
+
The Johnson Pump 10-24689-01 self-priming flexible impeller pump delivers up to 48 l/min (2880 LPH) from a 12V DC motor for demanding marine duties such as bilge pumping, deck cleaning, water circulation, and oil and diesel refueling service. A bronze body with a lip seal and included nitrile impeller supports durable, reliable operation, while built-in thermal overload protection helps safeguard the motor. Compact dimensions and combined 25 mm (1") hose and 1/2" BSP female thread connections make installation straightforward, even in tight spaces.
- Description
- Ask a Question
-

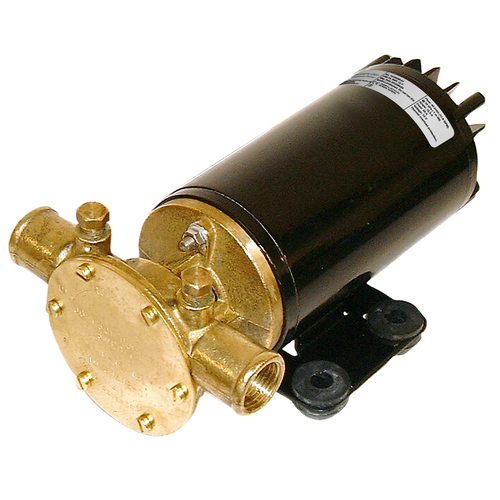

Johnson Pump 10-24689-01 12V Flexible Impeller Pump Unit
Built for hard-working marine service, this self-priming impeller pump combines a 12V DC motor with a robust metal pump body for reliable fluid transfer. It is suited to tasks ranging from bilge water removal to deck wash and circulation, with integrated motor thermal overload protection to enhance operational safety.
Application
- Bilge pumping
- Bilge systems water removal
- Deck cleaning
- Deck wash pumping
- Water circulation
- Circulating pump use
- Fire pump use
- Oil refueling service
- Diesel refueling service
- Port service refueling
Technical Specifications
Model 10-24689-01 Series F4B-19 Voltage 12V DC Capacity 48 l/min Flow Rate (Free Flow) 2880 LPH Flow Rate at 1 m Head 2700 LPH Flow Rate at 3 m Head 2460 LPH (also listed as approx. 41 l/min at 3 m head) Flow Rate at 6 m Head 2040 LPH Self-Priming Capacity Up to 4 m Maximum Head Should not exceed 6 m Continuous Operation Up to max. 0.6 bar head pressure Current Draw (As Listed) 12.2A at 0 bar; 14.9A at 0.6 bar; also listed as 18.3A Fuse (As Listed) 15A (also listed as 25A) Body / Housing Bronze Pump Head Material (As Listed) Brass Shaft Seal Lip seal Impeller Nitrile impeller included; replacement impeller listed as 09-824P-9 and JP-09-824P-9 Service Kit (As Listed) 09-46600 Inlet / Outlet Connection 25 mm (1") ID hose and 1/2" BSP female thread Dimensions 202 mm (L) x 120 mm (W) x 90 mm (H) (length also listed as 20.8 cm) Weight 3 kg (shipping weight also listed as 3.50 kg) Approvals ISO 8846 marine (ignition); ISO 8849 marine (bilge pump); ISO 10133 Small Craft (Low Voltage DC Installations) EAN 8719182062448 Article Number 66102468901 Product Portfolio (As Listed) General Purpose Pumps; Electric impeller pumps
Product Details
- Pump type: Self-priming flexible impeller pump
- Motor protection: Built-in thermal overload protection
- Construction focus: Compact form factor for installation in tight spaces
Features
- Delivers up to 48 l/min output for fast transfer and cleanup tasks
- Self-priming up to 4 m under perfect conditions for easier starts
- Bronze body and lip seal for durable marine service
- Includes an oil-resistant nitrile impeller
- Supports multiple use cases including bilge pumping, deck wash, circulation, and oil and diesel refueling service
-
