ID
1007598
$ 2,069.49
1-2 weeks delivery time
-
+
The Johnson Pump 10-13165-02 F95B-9 engine cooling pump delivers robust, self-priming cooling-water circulation for marine and industrial applications. A durable bronze body and neoprene impeller support reliable performance, while the flange-mounted design uses a special 124 mm x 93 mm flange connection. It is specified with 1-1/2 inch hose inlet and outlet, a spline-drive impeller hub, and a 25.395 mm (1 inch) keyed shaft end secured by bolt; shipping weight is 12.50 kg and the unit includes an MC97 impeller.
- Description
- Ask a Question
-

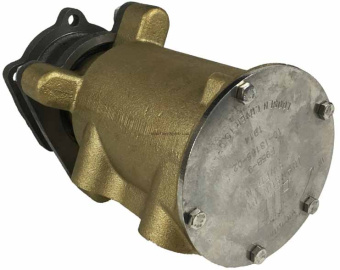

Johnson Pump 10-13165-02 F95B-9 Self-Priming Cooling Water Pump
The Johnson Pump 10-13165-02 from the F95B-9 series is a robust engine cooling impeller pump built for dependable cooling-water circulation. With a bronze construction and a neoprene impeller, it is suited to demanding marine and industrial environments and is commonly used in engine-room cooling systems.
Application
- Use: Engine cooling (cooling water pump)
- Applications: Marine and industrial
- Often found on:
- MAN D2840 LE301
- MAN D2840 LE302
- MAN D2840 LE402
- MAN D2840 LE403
- MAN D2840 LE404
- MAN D2840 LE407
- MAN D2840 LE409
- MAN D2840 LE423
- MAN D2842 LE422
- MAN D2842 LE423
- MAN D2842 LE433
- MAN D2842 LE446
- MAN D2842 LE453
- MAN D2842 LXE
- MAN D2842 LYE
- MAN D2842 LZE
- MAN D2842 LE400
- MAN D2842 401
- MAN D2842 02
- MAN D2842 06
- MAN D2842 08
Technical Specifications
Brand Johnson Pump Part Number 10-13165-02 Series F95B-9 Pump Type Impeller pump / engine cooling pump Pump Size F95 Priming Self-priming Cam Version 1/1 Material Bronze Impeller Material Neoprene Included Impeller MC97 Mounting Type Flange Connection Flange adapter Flange Connection Size 124 mm x 93 mm Hose Inlet 1-1/2 inch Hose Outlet 1-1/2 inch Impeller Hub Spline drive Drive / Shaft End 25.395 mm (1 inch) shaft end with woodruff key, locked with bolt Shipping Weight 12.50 kg Product Portfolio Impeller pumps; Cooling water pumps
Product Details
- Flange-mounted bronze body for durable service life
- Neoprene impeller for reliable engine cooling performance
- Special 124 mm x 93 mm flange connection for flange installation
- Service and spare parts (listed):
- Service kit: 09-46599-1
- Impeller kit: 09-820B
- Screw kit: 09-47553-107
- Alternative references (listed):
- Johnson Pump 10-13165-01
- Johnson Pump 10-13165-02
- MAN 51.06500-7035
- MAN 51065007035
- MAN 51.06500.7035
Features
- Self-priming design for dependable cooling-water circulation
- Bronze construction supports durability in marine and industrial use
- Flange mounting with a special 124 mm x 93 mm connection interface
- Includes MC97 impeller
-
