ID
1007047
$ 1,638.95
1-2 weeks delivery time
-
+
The Johnson Pump 10-13027-99 impeller pump unit with an electromagnetic clutch delivers on-demand operation at the push of a button and helps protect against dry running by disengaging when air is drawn in (when used with a recommended vacuum switch for bilge pump applications). Built with a bronze pump body, stainless steel shaft with permanently lubricated double ball bearings, and a mechanical seal, it supports durable heavy duty service with a 2" BSP connection and foot mounting, plus replaceable wear parts and available service kits.
- Description
- Ask a Question
-

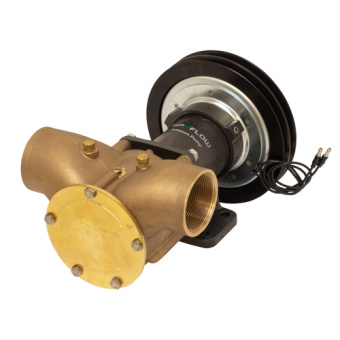

Johnson Pump 10-13027-99 Electromagnetic Clutch Impeller Pump Unit
The Johnson Pump 10-13027-99 is an impeller pump designed for heavy duty applications where on-demand power control is needed. Its electromagnetic clutch enables push-button operation, and—when used with a recommended vacuum switch for bilge pump applications—the clutch can disengage automatically if the pump draws in air to help prevent dry running and potential pump damage.
Application
- Heavy duty applications with on-demand clutch engagement
- Bilge pump applications (vacuum switch recommended)
Technical Specifications
Model F9B-5600 (DWP376) Pump Body Bronze (connection for vacuum switch) Shaft Stainless steel with permanently lubricated double ball bearings Seal Mechanical seal Cam Full or partial comb Connection 2" BSP Clutch Electromagnetic 12/24 V DC Pulley 2xA or 1xB groove Pulley Diameter 178 mm / 7" Impeller 09-802B (09-814B*) Impeller Hub Spline drive Mounting Type Foot mounting Drive/Shaft End Coupling Dimensions (L x H x W) 290 mm / 11.4' x 192 mm / 7.56' x 157 mm / 6.18' Weight 13.2 kg / 27 lbs Shipping Weight 10.00 kg
Product Details
- Brand: SPX Johnson Pump
- Product Portfolio: Impeller pumps
- Wear Parts Support: Wear parts can be easily replaced; service kits are available for standard models
- Accessory Note: Vacuum switch is available as an accessory
- Ordering Note: Coupling must be ordered separately
- Service Kit (order): 09-45582
- Impeller Kit (order): 09-814B
Features
- Electromagnetic clutch provides push-button, on-demand power control
- Automatic clutch disengagement when air is drawn in (with recommended vacuum switch use) helps prevent dry running
- Bronze body and stainless steel shaft support durability in demanding duty cycles
- 2" BSP connection and foot mounting simplify installation in suitable systems
* Pump with nitrile impeller available upon request.
-
