The Johnson Pump 10-13350-03 Viking Power 16 diaphragm pump delivers efficient 12V operation for bilge, grey water, shower drain, and wastewater handling on boats. Its single-chamber, self-priming design lifts up to 3 meters, runs dry, and pumps air/water mixtures, while relief/non-choke valves remove the need for in-line filters. Quiet performance is supported by low pulse operation and a vibration-dampening rubber bracket, and durability comes from a glass-fiber-reinforced nylon housing with reinforced nitrile rubber valves and diaphragm that can be replaced without disassembling the pump.
- Description
- Ask a Question
-

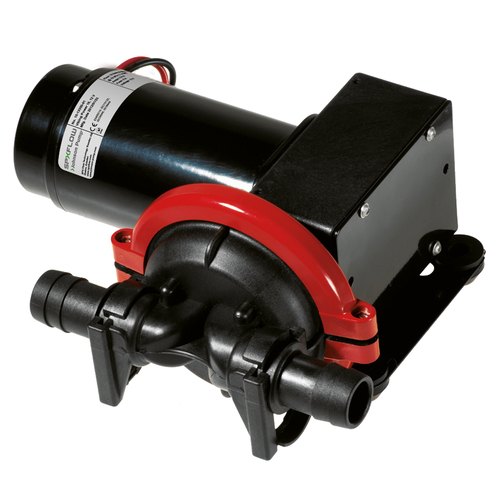

Johnson Pump Viking Power 16 12V Diaphragm Unit for Wastewater and Bilge Pumping
The Johnson Pump Viking Power 16 is an ultramodern, single-chamber, self-priming diaphragm pump designed for flexible installation on boats. It can be mounted behind a sewage or shower drain outlet or used as a bilge pump, and its relief/non-choke valve design eliminates the need for in-line filters while supporting dry running and air/water mixtures.
Application
- Behind sewage drains in wastewater systems
- Bilge pumping on pleasure boats and leisure craft
- Grey water systems
- Shower drain systems
Technical Specifications
Part Number 10-13350-03 Article Number 66101335003 Model Viking Power 16 EAN 8719182058366 Voltage 12/24V DC (listed as 12V / 2.3A for this version) Motor Current (at 0.1 bar) 2.3 amp (12V), 1.2 amp (24V) Max Amperage 4A Recommended Fuse Size 8A Self-Priming Up to 3 m Output (as listed) 19 liters per minute Max Output (as listed) 16 liters per minute (4.5 GPM) Connections 1" and 3/4" hose (25 and 19 mm) and 1/2" BSP Dimensions (as listed) 186 x 235 x 118 mm Additional Dimensions (as listed) Length 186 mm; Width 227/181 mm; Height 117/204 mm Weight 2.6 kg (5.7 lbs) Shipping Weight (as listed) 3.80 kg Housing Material Nylon, glass fiber reinforced Valve Material Nitrile rubber Diaphragm Material Reinforced nitrile rubber Product Portfolio (as listed) Electric bilge pumps
Product Details
- Pump type: Single-chamber diaphragm pump
- Valve concept: Relief/non-choke valves help eliminate the need for in-line filters
- Operating capability: Can run dry and can pump air/water mixtures
- Noise and vibration control: Low pulse operation with a vibration-dampening rubber bracket
- Serviceability: Diaphragm can be replaced without disassembling the pump from the system
- Included connections: Supplied with 1" and 3/4" tubing and 1/2" BSP KlickTite XL connectors
Features
- Self-priming up to 3 meters
- Quiet operation with low impulse/low pulse behavior
- Durable construction with reinforced nitrile rubber components
- Compact, versatile mounting for varied boat installations
- No filter required due to the valve design
Optional Accessory (as listed)
- Viking grey water tank 09-13384, including the Johnson Ultima Switch and attachment points for the Viking Power 16
-
