ID
1330895
$ 576
1-2 weeks delivery time
-
+
The Johnson Pump Viking Power 32 10-13373-03 diaphragm pump delivers dependable wastewater transfer for marine and vehicle installations, using a single-chamber design with valves to move waste water to a waste water or holding tank. 12V operation supports robust performance with up to 32 l/min output, self-priming up to 2.5 m, and a 1-1/2 in (38 mm) hose connection for straightforward plumbing. A durable nylon housing, nitrile rubber valves, and a reinforced nitrile rubber diaphragm help ensure long service life, while built-in thermal protection, dry-run capability, and quiet operation enhance reliability in demanding use.
- Description
- Ask a Question
-

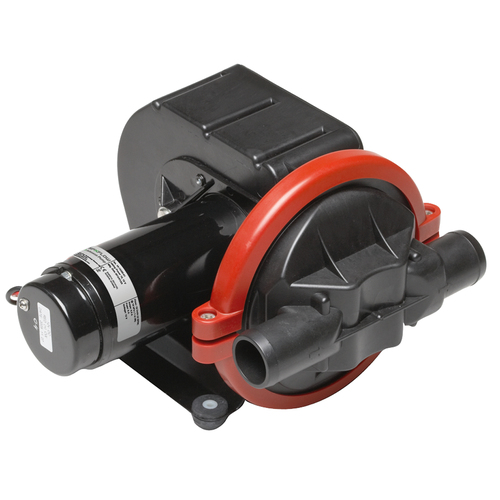

Johnson Viking Power 32 10-13373-03 Wastewater Diaphragm Pump
The Johnson Pump Viking Power 32 is a robust, self-priming, single-chamber diaphragm pump engineered to move waste water, including black waste water, in marine and vehicle applications. It is designed to pump to a waste water or holding tank and supports adaptable installation thanks to its compact, simple design.
Application
- Bilge pumping
- Grey water pumping
- Toilet drain and waste water pumping
- Black waste water pumping
- Installations for boat, bus, and vehicle manufacturers
- Wastewater management on leisure crafts
Technical Specifications
Part Number 10-13373-03 Article Number 66101337303 Model Viking Power 32 EAN 8719182058489 Voltage 12/24V DC Motor Current (at 0.1 bar) 3.3 A (12V), 1.6 A (24V) Current Draw (12V) 3.5 A Maximum Amperage 6.1 A Fuse Size 12 A Maximum Output 32 l/min Self-Priming Up to 2.5 m Connection Ports for 38 mm (1 1/2 in) ID hose Dimensions (L x W x H) 277 x 264 x 192 mm Weight 5.0 kg Shipping Weight 8.00 kg
Product Details
- Pump Type: Self-priming, single-chamber diaphragm pump
- Housing Material: Nylon
- Valve Material: Nitrile rubber
- Diaphragm Material: Reinforced nitrile rubber
- Protection: Built-in thermal protection
- Product Portfolio: Electric bilge pumps
Features
- Specifically engineered to pump black waste water
- Can run dry and can pump an air/water mixture
- Quiet operation
- Compact and simple design with no filter required
- Manual-crank backup
- Oil-resistant nitrile rubber valves and diaphragm
- Designed with a large single diaphragm and long stroke to help flush debris through
- Low pulse design with a muffled rubber bracket
- Engineered for easy maintenance
-
