The Johnson Pump Viking Power 16 diaphragm pump 10-13350-04 delivers self-priming wastewater and bilge pumping for boats and sewage systems, with 24V DC operation rated at 1.2A at 0.1 bar. Relief valves and non-choke valves eliminate the need for in-line filters while supporting safe dry running and pumping air/water mixtures. A low-pulse design with a dampening rubber bracket helps keep operation quiet, and the reinforced nitrile rubber diaphragm is designed for straightforward maintenance and replacement. Supplied tubing and KlickTite XL connectors support fast installation, with compact dimensions and a 2.6 kg pump weight for flexible mounting.
- Description
- Ask a Question
-

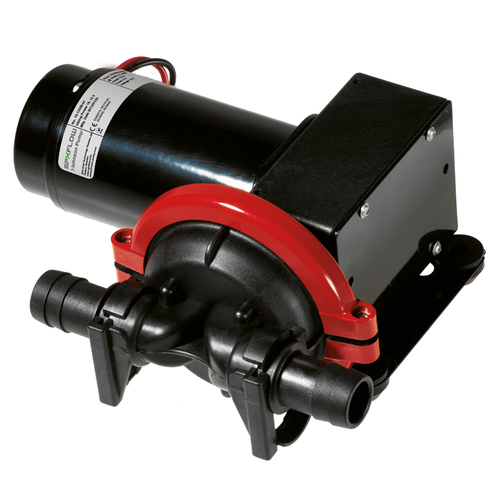

Viking Power 16 Diaphragm Wastewater and Bilge Pump by Johnson Pump
The Johnson Pump 10-13350-04 Viking Power 16 is a modern, single-chamber, self-priming diaphragm pump developed for handling wastewater, shower drain water, and bilge water on leisure craft, and for installation behind the drain in sewage systems. Its valve design supports reliable pumping of air/water mixtures and allows the pump to run dry without requiring in-line filtration.
Application
- Bilge pumping on boats and leisure craft
- Wastewater and grey water pumping
- Shower drain water pumping
- Installation behind the drain in sewage systems
Technical Specifications
Brand Johnson Pump Part Number 10-13350-04 Article Number 66101335004 Model Viking Power 16 Voltage 12/24V DC Motor Current 2.3A (12V) / 1.2A (24V) at 0.1 bar Maximum Amperage 1.9A Recommended Fuse Size 4A Self-Priming Height Up to 3 m Capacity 19 l/min Output (Maximum) 16 litres/minute (4.5 GPM) Connections 1 inch and 3/4 inch hose; 1/2 inch BSP; KlickTite XL connectors for 25 mm (1 inch) and 19 mm (3/4 inch) internal diameter hose Housing Material Nylon, glass fiber reinforced Valve Material Nitrile rubber Diaphragm Material Reinforced nitrile rubber Dimensions (Listed) Length 186 mm; width 227/181 mm; height 117/204 mm Dimensions (Also Listed) 186 x 181 x 204 mm Weight 2.6 kg (5.7 lbs) Shipping Weight 3.80 kg EAN 8719182058366 Product Portfolio Electric bilge pumps
Product Details
- Pump type: Single-chamber, self-priming diaphragm pump
- Installation flexibility: Suitable for various pump-motor configurations and can be installed behind the drain outlet
- Serviceability: Reinforced nitrile rubber diaphragm can be replaced without removing the pump from the system
- Noise control: Low pulse with a dampening rubber bracket for quieter operation
- Included in the package: Tubing and connectors, including 1 inch and 3/4 inch tubing and 1/2 inch BSP KlickTite XL connectors
Features
- Self-priming up to 3 m
- Can run dry and can pump an air/water mixture
- Relief valves and non-choke valves help eliminate the need for in-line filters
- Oil-resistant nitrile rubber valves and diaphragm
- Compact design for adaptable mounting on board
-
