The SPX Johnson Pump 10-13022-99 F8B-5001 impeller pump unit delivers heavy-duty pumping with remote on/off control via an electromagnetic clutch. A dedicated connection for a vacuum switch (recommended for bilge pump use) helps the clutch disengage automatically to reduce dry running and pump damage. Built with a bronze pump body, stainless steel shaft with permanently lubricated double ball bearings, a mechanical seal, and a 1-1/2" BSP connection, it combines durability with service-friendly maintenance thanks to replaceable wear parts and available service kits; the coupling must be ordered separately.
- Description
- Ask a Question
-

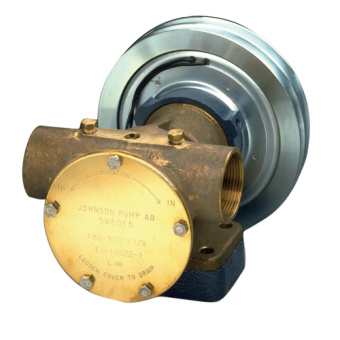

SPX Johnson Pump 10-13022-99 F8B-5001 Impeller Pump Unit
This F8B-5001 impeller pump from SPX Johnson Pump is built for heavy-duty applications where convenient control and protection against dry running matter. Its electromagnetic clutch enables remote pump control, and when used with a vacuum switch (recommended for bilge pump applications) the clutch can disengage automatically if the pump draws in air to help prevent damage.
Application
- Heavy-duty pumping applications
- Remote pump control using an electromagnetic clutch
- Bilge pump applications when used with a vacuum switch (recommended)
Technical Specifications
Brand SPX Johnson Pump Part Number 10-13022-99 Model F8B-5001 Product Portfolio Impeller pumps Pump Body Material Bronze Shaft Stainless Steel (Permanently Lubricated Double Ball Bearings) Seal Type Mechanical Seal Cam Full or Partial Comb Connection 1-1/2" BSP Vacuum Switch Connection Yes Clutch Electromagnetic, 12/24 V DC Pulley 2xA or 1xB Groove Pulley Diameter 178 mm / 7" Impeller 09-819B Impeller Hub Spline Drive Mounting Type Foot Mounting Drive / Shaft End Coupling Weight 9.9 kg / 22 lbs Shipping Weight 6.60 kg Length 225 mm / 8.85" Height 160 mm / 6.29" Width 124 mm / 4.88"
Product Details
- Remote operation: Electromagnetic clutch enables control without being physically at the pump
- Dry-run protection support: When paired with a vacuum switch (accessory), the clutch can disengage automatically when air is drawn in
- Serviceability: Wear parts are replaceable; service kits are available for standard models
- Ordering note: Coupling must be ordered separately
- Cover marking note: On pumps with end numbers -96, -97, -98, or -99, there is usually only “10-13022” on the cover
Features
- Bronze pump body for durability
- Stainless steel shaft with permanently lubricated double ball bearings
- Mechanical seal design
- 1-1/2" BSP connection
- Electromagnetic clutch rated for 12/24 V DC
Service and Spare Parts (From Provided Information)
- Service kit: 09-45575
- Impeller kit: 09-819B
-
