ID
1330921
$ 597.33
1-2 weeks delivery time
-
+
The Johnson Pump 10-24119-2 impeller pump is a self-priming raw water and engine cooling unit built for reliable marine service. Its bronze body, flange-mounted drive, and neoprene impeller support robust operation while passing fairly large solids to help reduce clogging and pump damage. 3/4 inch threaded ports (3/4 inch BSP female inlet and outlet) plus a 7/8 inch shaft with slotted or splined coupling (depending on pump model) and a lip shaft seal round out a durable, engine-mounted pumping solution; shipping weight is 1.80 kg, and the product may contain materials cautioned by California Proposition 65.
- Description
- Ask a Question
-

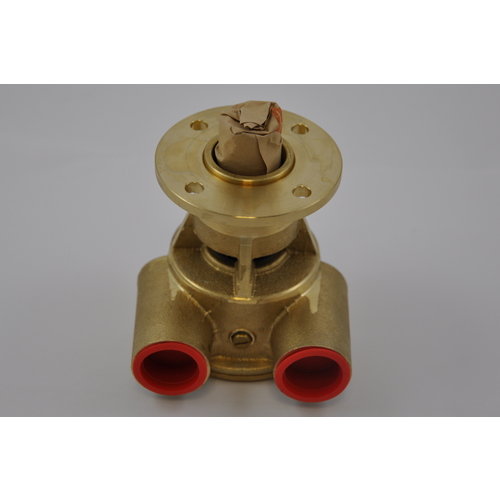

Johnson Pump 10-24119-2 Self-Priming F5B-9002 Impeller Pump Unit
The Johnson Pump 10-24119-2 is a self-priming impeller pump designed for diverse raw water and engine cooling water pumping requirements in marine installations. Built around a rugged bronze body and an engine-ready flange mount, it is engineered to handle most pumping needs while passing fairly large solids to help minimize clogging and reduce the risk of pump damage.
Application
- Raw water pumping
- Engine cooling water circulation (flange-mounted to engine)
Compatibility
- Perkins 4107 engines
- Perkins 4108 engines
- Perkins 4-cylinder models
- BMW B 130 engines
- C-Power 4.120 engines
- CT Marine 4.107 engines
- CT Marine 4.108 engines
- CT Marine LD 60 engines
- CT Marine LD 115 engines
- Dolphin Marine Hadar II engines
- Dolphin Marine Vega II engines
- F J Fay V1902BG2 engines
- Iveco-Aifo 8041 engines
- Matra XD2P engines
- Matra XD2PS engines
- JG Meakes JGM 2500D engines
- Mercedes OM 636 engines
- Nanni MB 180 engines
- Nanni MB 300 engines
- Ruggerini PM 105/2 engines
- Sea Wasp SW 8800 models
- Sea Wasp SW 10000 models
- Sea Wasp SW 13600 models
- Sea Wasp SW 16000 models
- Sea Wasp SW 20000 models
- Sea Wasp SW 24000 models
- Tempest Commander 2.5 litre models
- Tempest Sea Prince 3000S models
- VM Motori series
- DTN-Dieseltechniek X4M 88A engines
- Ford FSD 425A Transit engines
- High Power Marine 4.108 engines
- Iveco-Aifo CP 3M engines
- Iveco-Aifo 8041 SRM engines
- Iveco-Aifo 8041 M/SM engines
- Iveco-Aifo 804 AM/M engines
- Iveco-Aifo 806 AM/M engines
- Iveco-Aifo CO 3M/SM engines
- Matra XD2PS Turbo engines
- Meakes JG JGM 2500D (2.5 l) engines
- Nanni Diesel Gensets V2203
- Ruggerini RDM 901/2 engines
- Sea Wasp SW 8800-11 KVA models
- Sea Wasp Early SW 24000-30 KVA models
- Sea Wasp SW 16000-20 KVA models
- Sea Wasp SW 13600-17 KVA models
- Sea Wasp SW 10000-12.5 KVA models
- Sea Wasp Early SW 20000-25 KVA models
- Tempest Commander 50HP (HX) models
- Tempest Commander 2.5LR (HX) models
- VM Motori 804 M engines
- VM Motori 806 M engines
- VM Motori 104 MH11/SV engines
- VM Motori 103 MH11 engines
- VM Motori 106 MH11 engines
- VM Motori 106 MH11/SV engines
- VM Motori 116 DAN M engines
- VM Motori 104 MH11 engines
- VM Motori 103 MH11/SV engines
- Volvo Penta 4.99M engines
- Perkins 4.99M engines
- Volvo Penta 4.108 4 cyl engines
- Perkins 4.108 4 cyl engines
- Volvo Penta 4.107MLL engines
- Perkins 4.107MLL engines
- Vythoulcas K3E/H/M engines
Technical Specifications
Brand Johnson Pump Model / Size F5B-9002 Pump Type Self-priming impeller pump Body Material Bronze Cam Full Thickness Standard Or 1/2 Thickness Optional Mounting Type Flange Drive Flange Mounted To Engine; uses a dog drive Drive / Shaft End Coupling Impeller Neoprene Standard Impeller Hub Spline Drive Ports 3/4 inch Threaded Connection 3/4 inch BSP; 3/4 inch BSP female inlet and outlet; R 3/4 female thread connections Shaft 7/8 inch with slotted or splined coupling depending on pump model Shaft Seal Lip Shipping Weight 1.80 kg Article Number 6610241192
Product Details
- Product portfolio: Impeller pumps; cooling water pumps
- Replacement impeller: Part number 09-1027B
- Impeller kit: 09-1027B-1
- Service kit: 09-45583
- Replaces: Johnson 10-24035-2
- Replaces: Jabsco 3270-0001
- Replaces: Jabsco 3270-200
- Alternative to: Nanni Diesel 970315208
- Conversion note: When converting the eccentric to 1/2 (01-45014) also as an alternative to Johnson Pump Marine 10-24119-03
- Regulatory note: May contain materials cautioned by California Proposition 65
Features
- Self-priming design supports dependable raw water pickup
- Passes fairly large solids to help reduce clogging and limit damage risk
- Bronze construction enhances durability for marine environments
- Engine flange mounting simplifies integration on compatible engines
- Neoprene impeller provides reliable pumping performance
-
