$ 685.17
1-2 weeks delivery time
-
+
The Johnson Pump 10-13568-12 bronze impeller pump is a self-priming cooling water unit in size F5B-9, built with a bronze pump body for pulley mount and retainer installation. Drive via a double V-belt pulley supports dependable operation, while the included MC97 impeller and spline-drive impeller hub help maintain consistent cooling water flow. With 32 mm hose connections and crankshaft pulley mounting, it is frequently used on a wide range of Volvo Penta engines and sterndrive applications listed in the product details.
- Description
- Ask a Question
-

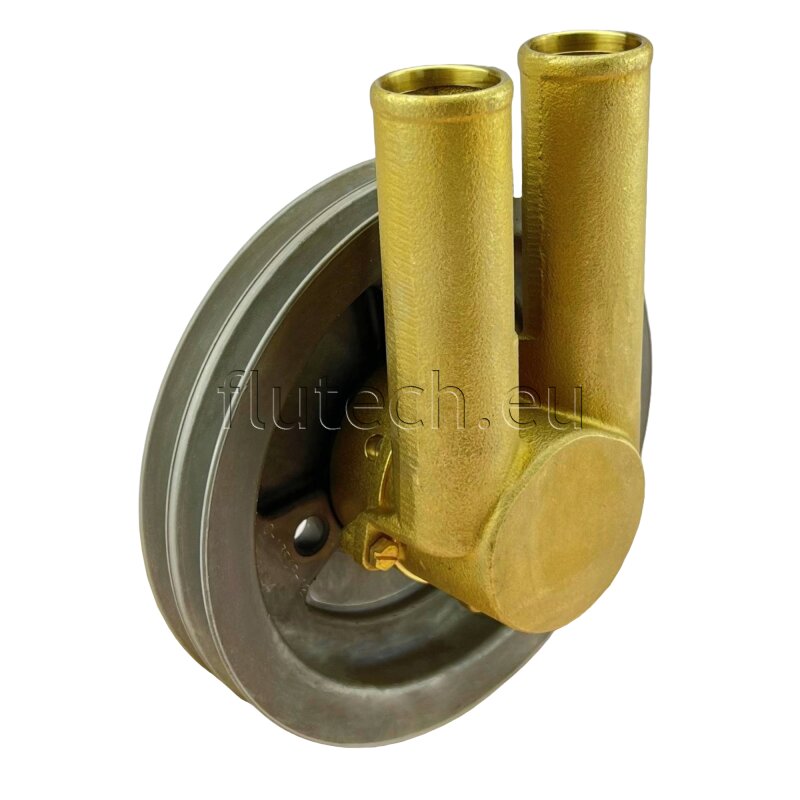

Johnson 10-13568-12 F5B-9 Bronze Impeller Cooling Water Pump
This Johnson Pump bronze impeller pump is a self-priming cooling water pump designed for marine engine cooling circuits. Its pulley-mounted design and robust bronze body support long service life in demanding engine rooms, while the supplied MC97 impeller helps keep cooling water circulation reliable.
Application
- Self-priming cooling water pump in size F5 (F5B-9)
- Bronze pump body for pulley mount and retainer
- Drive via double V-belt pulley
- Connections: 32 mm hose connections
Compatibility
- Volvo Penta 7.4GIPWTR
- Volvo Penta 7.4GSIPWTR
- Volvo Penta 8.2GSIPWTR
- Volvo Penta DPX385XWTR
- Volvo Penta DPX415XWTR
- Volvo Penta 7.4GiPEFS
- Volvo Penta 7.4GSiPEFS
- Volvo Penta 8.2GSiPEFS
- Volvo Penta DPX385XEFS
- Volvo Penta DPX415XEFS
Technical Specifications
Brand Johnson Pump Part Number 10-13568-12 Pump Type Impeller pump; cooling water pump Size F5 (F5B-9) Material Bronze Connection 32 mm hose connection Impeller Hub Spline Drive Mounting Type Crankshaft Pulley Drive / Shaft End Crankshaft Pulley
Product Details
- Mounting: Pulley mount (retainer)
- Drive: Double V-belt pulley
- Impeller Included: MC97
Alternatives and Reference Numbers
- Alternative to Johnson Pump Marine 10-13325-02 (predecessor)
- Alternative to Johnson Pump Marine 10-13354-02 (predecessor)
- Alternative to Johnson Pump Marine 10-13469-02 (predecessor)
- Alternative to Johnson Pump Marine 10-13568-02 (OEM)
- Alternative to Johnson Pump Marine 10-13568-12 (open market)
- Volvo Penta 3812698 (predecessor)
- Volvo Penta 21427729 (predecessor)
- Volvo Penta 21427729
-
