$ 394.94
1-2 weeks delivery time
-
+

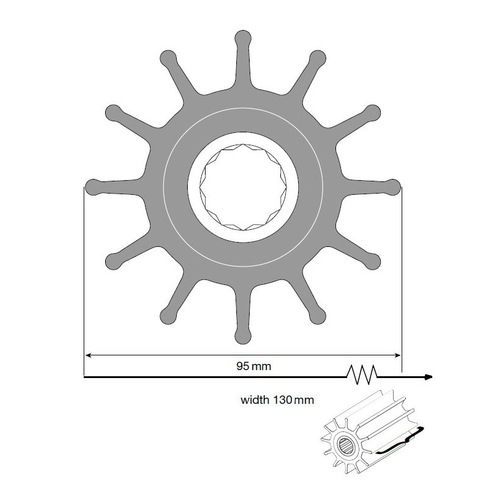

The Johnson Pump 09-820B neoprene impeller service kit is a 12-blade, spline-drive replacement designed for SPX Johnson Pump F95 pumps and compatible MAN pumps. With a 95 mm outer diameter and 130 mm width, it provides a direct alternative to Johnson Pump 09-820B and 08-820B as well as MAN 51.06506.0106 and 51.06506-0106, helping restore dependable water-pumping performance for marine and industrial use.
- Description
- Ask a Question
-
Johnson Pump 09-820B Neoprene Spline-Drive Impeller Kit
The Johnson Pump 09-820B is a neoprene impeller service kit built for reliable water-pumping service. Designed with a spline drive and a 12-blade impeller geometry, it is intended for use in SPX Johnson Pump F95 pumps and is also listed as suitable for compatible MAN pump applications.
Application
- Marine and industrial water-pumping needs
Compatibility
- SPX Johnson Pump F95 pumps
- Compatible MAN pumps
Technical Specifications
Brand Johnson Pump Product Portfolio Impeller Material Neoprene Insert Material Brass Impeller Hub Spline Drive Outer Diameter 95 mm Width 130 mm Shaft Diameter 25.4 mm Number of Blades 12 Article Number 6609820B EAN 8719182044925 Shipping Weight 1.60 kg
Product Details
- Service kit contents: Impeller 09-820B, 1 x grease, 1 x washer
- Replacement alternatives:
- Johnson Pump 09-820B
- Johnson Pump 08-820B
- MAN 51.06506.0106
- MAN 51.06506-0106
Features
- Neoprene impeller construction for water-pump service
- Spline-drive hub for specified pump fitment
- 12-blade design matched to the listed F95 application
-
