The Johnson Pump 09-819B neoprene flexible impeller service kit is built for routine water-pumping tasks such as engine cooling, water transfer, wash down, and bilge pumping. With a 95 mm diameter and 63 mm depth/width plus a spline-drive hub, it fits Johnson Pump F8 pump models and is also listed for Volvo Penta pumps 3830699 and 3836564. The kit includes the 09-819B impeller, grease (glycerine), and 2 washers, and it replaces 836-0001 and 17935-0001; a cover seal is not included, but compatible seal options are 01-45354 (1 hole above) and 01-42424 (2 holes above).
- Description
- Ask a Question
-
Johnson Pump 09-819B Flexible Impeller Kit for F8 Pump Systems
The Johnson Pump 09-819B is a neoprene flexible impeller designed for F8 pump applications where dependable water pumping is required. It is intended for routine duties including engine cooling, wash down, water transfer, and bilge pumping, and it is supplied as a service kit with the listed accessories.
Application
- Routine water-pumping applications such as engine cooling, wash down, water transfer, and bilge pumping
Compatibility
- Johnson Pump F8 pump models
- F8B-3 pumps
- F8B-303 pumps
- F8B-3000 (TSS) pumps
- F8B-3020 pumps
- F8B-3030 pumps
- F8B-5 pumps
- F8B-5000 (TSS) pumps
- F8B-5001 (MC) pumps
- F8B-50017 (MC) pumps
- F8B-8 pumps
- F8B-803 pumps
- F8B-8007 pumps
- F8B-8037 pumps
- F8B-9 pumps
- F8B-900 pumps
- F8B-902 pumps
- F8B-903 pumps
- F8B-905 pumps
- Volvo Penta pump 3830699
- Volvo Penta pump 3836564
- Jabsco pump 836-0001
- Jabsco pump 17935-0001
Technical Specifications

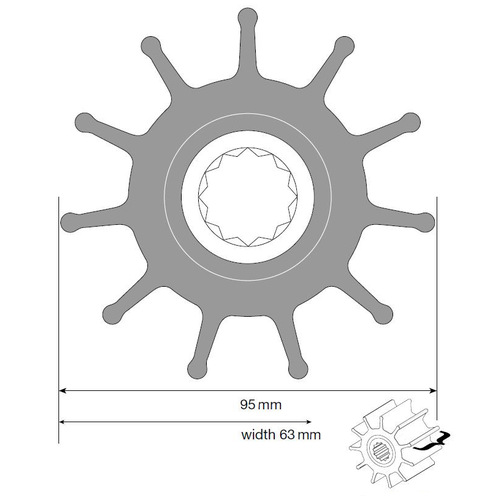

Brand Johnson Pump Product Portfolio Impeller Material Neoprene Outer Diameter 95 mm (3.74 in) Depth 63 mm (2.48 in) Width 63 mm Drive / Hub Spline Drive Shaft Dimension Splines Shaft Diameter 25.4 mm Number of Blades 11 Insert Material Brass Pump F8 Reference 14 Article Number 6609819B EAN 8719182044925 Shipping Weight 0.60 kg
Product Details
- Designed for: F8 pump impeller replacement
- Replaces: 836-0001
- Replaces: 17935-0001
- Cover Seal: Not included
- Suitable Seals: 01-45354 (1 hole above)
- Suitable Seals: 01-42424 (2 holes above)
Included in This Service Kit
- Impeller 09-819B
- Grease (glycerine)
- 2 washers
Alternative To
- Ancor J050035
- Caterpiller 5L6042, 5N9360, 1W9046
- Detroit Diesel 5196168, 8924838, 5196628
- Onan 500135
- Perkins 7054
- Volvo 875660, 857636-1, 825942, 807904
Features
- Neoprene construction intended for cooling applications
- Spline-drive design to match listed F8 pump configurations
- Service-kit format with included washers and lubricant for maintenance work
-
