ID
1330877
$ 111.60
1-2 weeks delivery time
-
+
The Johnson Pump 09-821BT-1 flexible impeller is built for F75 series circulation and water-pumping duties, supporting applications such as engine cooling and water transfer. Its MC97/EPDM material, 65 mm outer diameter, and 80 mm depth provide a precise fit for F75 series pumps including the F75B-9, while the spline drive hub and 12-blade design help maintain dependable pumping performance. One end is threaded for use with a puller, and it cross-references multiple replacement numbers including Johnson 09-821B and Sierra 18-45714.
- Description
- Ask a Question
-
Johnson Pump 09-821BT-1 F75 Flexible Impeller Unit
The Johnson Pump 09-821BT-1 is a neoprene flexible impeller for F75, Volvo, and Yanmar pump applications used in general water-pumping tasks. It is commonly used in systems such as engine cooling and water transfer, and is also referenced for wash down and bilge pumping use.
Application
- Engine cooling
- Water transfer
- Wash down
- Bilge pumping
Compatibility
- F75 Series Pumps
- F75B-9
- SPX F75 pumps
- Volvo pumps (as referenced)
- Yanmar pumps (as referenced)
Replaces / Cross-References
- Johnson 09-821BT-1
- Johnson 09-821B
- Johnson 09-821BT
- Sierra 18-45714
- Volvo Penta 3825113
- Yanmar 119578-42551
Referenced Pump and Engine Models
- F75B-9 series
- MAN 51.06500-7023
- MAN 51.06500-7034
- Yanmar 119578-42501
- Volvo Penta 3836563
- Bayliner engines (as referenced)
- Hino Motors W06D-T1-11 310
- Hino Motors W06D-T1-11 3000
- M.A.N. D2866LE variants
- M.A.N. 401 variants
- Volvo Penta TAMD63L-A
- Volvo Penta TAMD63P-A
- Yanmar 6LY2 (from 1997 onwards)
- Yanmar 6LY3 (from 1997 onwards)
Technical Specifications

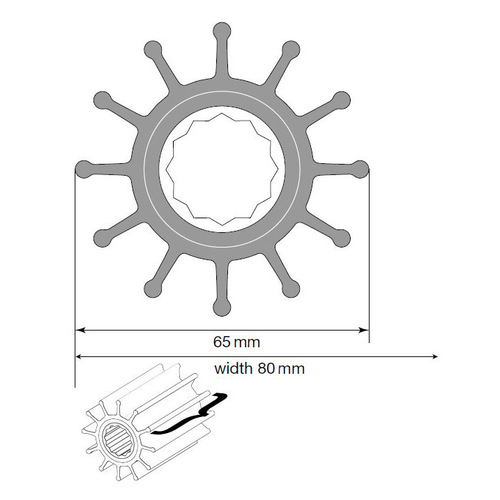

Brand Johnson Pump Product Portfolio Impeller Material MC97/EPDM Material (Listed) MC97 Outer Diameter 65 mm Depth 80 mm Width 80 mm Impeller Hub Spline Drive Shaft Dimension Splines Shaft Diameter 25 mm Number of Blades 12 Insert Material Brass Shipping Weight 0.60 kg EAN 8719182044925 Article Number 6609821BT-1
Product Details
- Threaded end on one side for use with a puller
- Listed as an impeller kit and also referenced as a service kit version including glycerine
- Included items listed: Impeller 09-821BT-1 and 1 × grease
- Referenced as an alternative to Volvo Penta 3825113
Features
- MC97/EPDM flexible impeller material for marine water-pumping use
- Spline-drive hub for compatible F75 pump installations
- Service-friendly removal support via threaded end for a puller
-
