ID
1353800
$ 855.80
1-2 weeks delivery time
-
+
The Flojet K561030A K56 Series beverage water boost system provides up to 15 LPM water pressure for beverage dispensers, coffee machines, filtration systems, carbonators, and ice machines, featuring a 1 gallon accumulator tank, CO2, nitrogen or compressed air operation, exhaust muffler, quick disconnect ports, and supports inlet pressures up to 30 psi (2.1 bar).
- Description
- Ask a Question
-

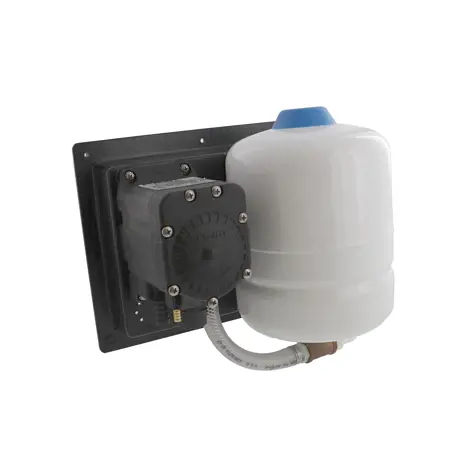

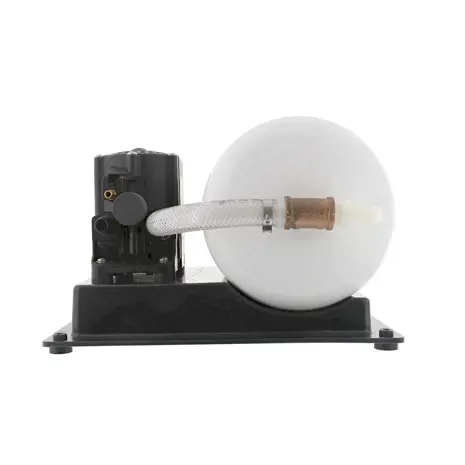

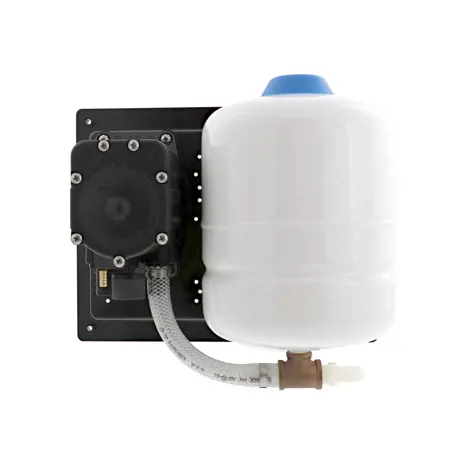

Flojet K561030A - K56 Series Beverage Water Boost System
The Flojet K561030A K56 Series beverage water boost system provides consistent water pressure for beverage dispensers, coffee machines, water filtration systems, carbonators and ice machines. Driven by G Series pump technology, it is engineered for reliable performance and extended service life.
System Features
The system supplies up to 4 GPM (15 LPM) and includes a 1 gallon (3.8 liter) accumulator tank to maintain constant flow. It operates with CO2, nitrogen or compressed filtered air and supports CO2 inlet pressures up to 90 psi (6.2 bar).
Construction And Installation
Equipped with an exhaust muffler and quick disconnect ports for easy installation. It works with liquid inlet pressures up to 30 psi (2.1 bar).
Technical Data
Power Source CO2 Gas, Nitrogen, Compressed Filtered Air Flow Rate 4 GPM (15 LPM) Displacement 3.2 oz. per cycle Self Priming Up to 10 ft. (3.05 m) Operating Pressure 60 - 90 psi (4.1 - 6.2 bar) Max. Liquid Inlet Pressure 30 psi (2.1 bar) Tank Charge Pressure 20 psi (1.4 bar) Temperature Range 34 - 120 °F (1.1 - 49 °C) Materials Polypropylene, Santoprene, EPDM, Nylon, Butyl, AISI 303 & 304 Stainless Steel, Brass Dimensions 30.48 x 29.21 x 17.78 cm (12 H x 11.5 W x 7 D inches) Weight 2.46 kg (5.42 lb) Product Inlet Fitting 1/2″ (12.7 mm) Barbed Straight Plastic Product Outlet Fitting 1/2″ (12.7 mm) Barbed Straight Nylon / Plastic Gas/Air Inlet Fitting 1/4″ (6.35 mm) CO2 Shutoff Brass Straight
Brand: Flojet
Article: K561030A -
