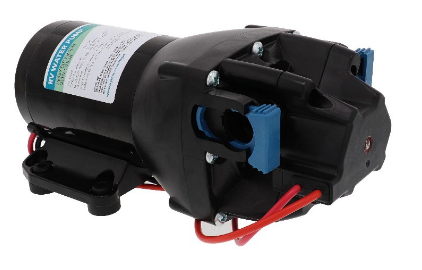

The Flojet Q301V-117S-3A RV Water System Series pump is a 12V freshwater delivery pump with 4 chamber diaphragm design, self-priming, capable of running dry, delivering 11 LPM at 50 PSI (3.4 bar), with thermal motor protection, vibration and noise reduction, and quick connect ports.
- Description
- Ask a Question
-
Flojet Q301V-117S-3A - RV Water System Series Freshwater Delivery Pump 12V 11LPM (3.4 Bar)
The Flojet Q301V-117S-3A RV Water System Series pump is a 12V freshwater delivery pump designed for RV water pressure systems. Built with a 4 chamber diaphragm design, it provides reliable and consistent water flow for mobile applications.
Key Features
Equipped with an enclosed motor, integrated pressure switch and vibration and noise reducing mounting. The pump is self-priming and can run dry without damage. It includes thermal motor protection (TCO) and a noise dampening baseplate.
Performance And Design
Heavy duty 12V operation delivering 3 GPM (11 LPM) at 50 PSI (3.4 bar). Features quick connect ports and a TENV permanent magnet motor for dependable operation.
Technical Data
Application RV Water Pressure System Design 4 Chamber Diaphragm Voltage 12V Flow Rate 11 LPM (3 GPM) Max Pressure 50 PSI (3.4 bar) Port Fittings 1 x 1/2″ (13 mm) Straight Hosebarb
1 x 1/2″ (13 mm) Elbow Hosebarb
2 x 1/2″-14 NPSM Straight ThreadedStrainer Inline Quick Connect; 40 Mesh Motor TENV Permanent Magnet Protection Thermal Motor Protection (TCO) Replaces 04406143A, R4406143M
Brand: Flojet
Article: Q301V-117S-3A -
