The Flojet M502052A M50 Mini-Bag-in-Box pump is a single diaphragm positive displacement pump suitable for juice concentrates without pulp, tea, wine, and other beverages, delivering up to 3.5 L/min with operating pressures from 1.4-4.8 bar, self-priming up to 1.83 m, and designed for up to 15,000 liters.
- Description
- Ask a Question
-

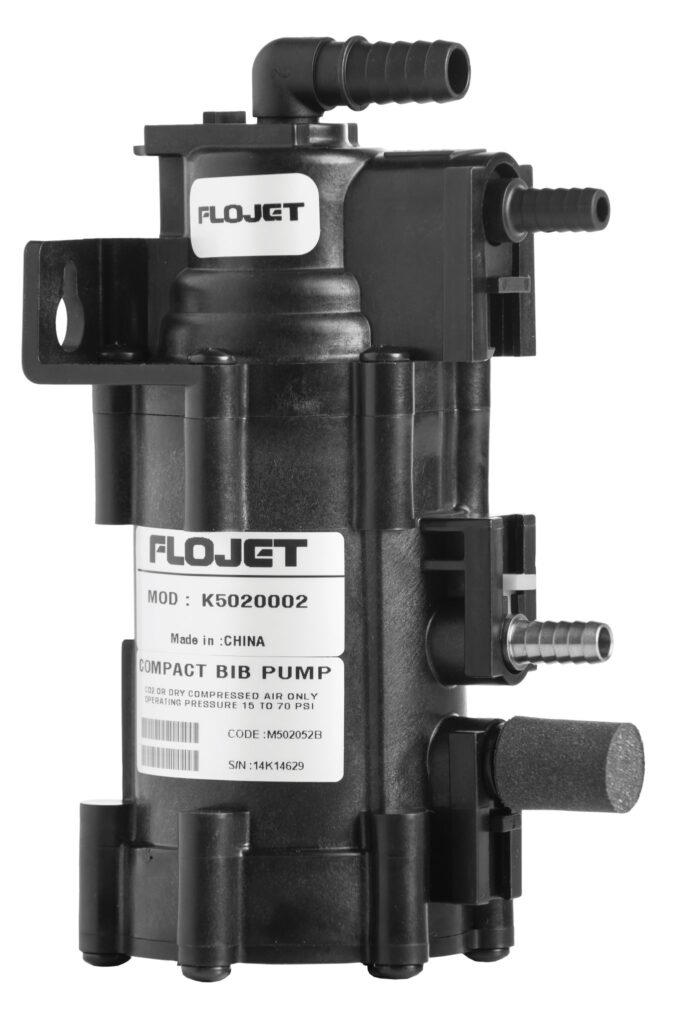

Flojet M502052A - M50 Mini-Bag-In-Box Pump
The Flojet M502052A M50 Mini-Bag-in-Box positive displacement pump with single diaphragm is suitable for fruit juice concentrates without pulp, tea, wine and other alcoholic beverages. It operates with CO2, nitrogen or dry, filtered compressed air.
Performance
Flow rate up to 3,5 l/min with operating pressure from 1.4 to 4.8 bar. Dry self-priming up to 1.83 m. Designed for pumping up to 15,000 liters.
Connections And Temperature
Beverage inlet 3/8″ (9.5 mm), beverage outlet 1/4″ (6.35 mm), pressure 1/4″ (6.35 mm). Working temperature from 1.1°C to 48.9°C.
Technical Data
Flow Rate Up to 3,5 l/min Operating Pressure 1.4 - 4.8 bar Self Priming Up to 1.83 m Connections 3/8″ (9.5 mm), 1/4″ (6.35 mm) Working Temperature 1.1°C - 48.9°C Weight 0.27 kg Approvals NSF, CE Service Life Up to 15,000 liters
Brand: Flojet
Article: M502052A -
