The Flojet G60G212I air-driven G60 water booster pump delivers up to 15 L/min, with adjustable flow via air or gas supply, dry self-priming up to 3 m, and water connections of 3/8″ or 1/2″, suitable for beverage and water systems.
- Description
- Ask a Question
-

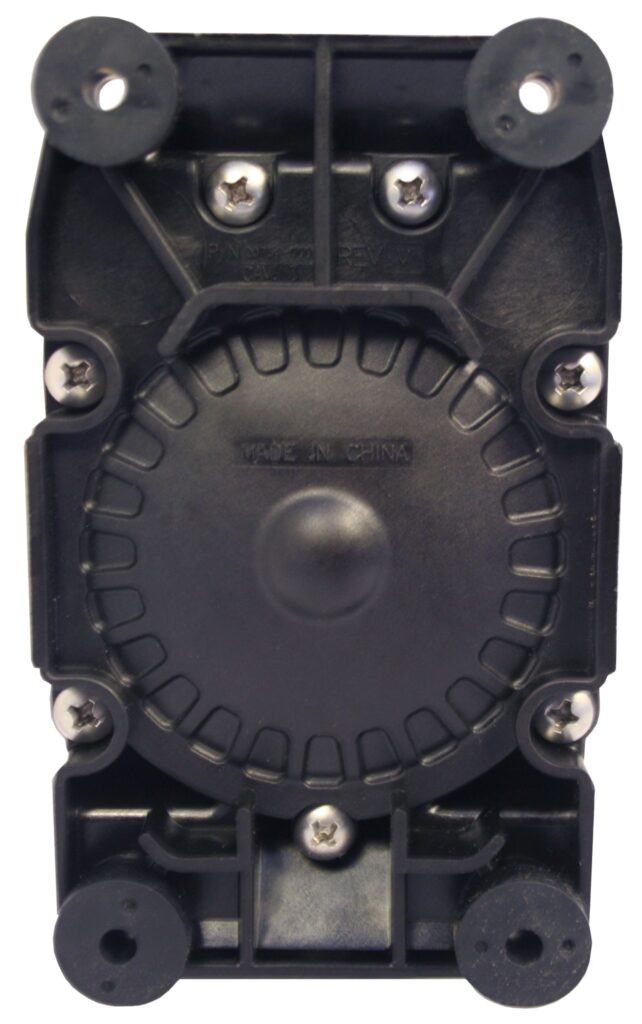

Flojet G60G212I - G60 Water Booster Pump 1/2“
The Flojet G60G212I air driven double diaphragm pump delivers consistent water pressure for filtration systems, carbonators, non-carbonated dispensing valves, bar trolleys, coffee machines, hand sinks, ice machines and slush machines. It operates with air, nitrogen or CO2 and allows precise adjustment through the gas or air supply.
Performance And Operation
The pump provides flow rates up to 15.0 l/min with an inlet pressure up to 2.1 bar. Delivery pressure reaches up to 6.2 bar with compressed air up to 6.2 bar. The unit is dry self-priming up to 3 m and designed for reliable performance in commercial beverage environments.
Connections And Temperature Range
Water connections are available in 3/8″ (9,5 mm) or 1/2″ (12,7 mm). Pressure connection is 1/4″ (6,35 mm). Other connection options are possible. The working temperature range is from 1°C to 49°C.
Technical Data
Flow Rate Up to 15.0 l/min Inlet Pressure Max. 2.1 bar Delivery Pressure Up to 6.2 bar Compressed Air Max. 6.2 bar Self-Priming Up to 3 m Connections 3/8″ (9,5 mm) or 1/2″ (12,7 mm), pressure 1/4″ (6,35 mm) Working Temperature 1°C - 49°C Weight 0,6 kg Approvals NDF, FDA, CE
Brand: Flojet
Article: G60G212I -
