ID
1353810
$ 443.68
1-2 weeks delivery time
-
+
The Flojet Q451F-118S-2P Versijet Series 4-chamber diaphragm pump is a 12V DC pump with EPDM check valve, delivering up to 17.1 LPM at 4.1 bar, self-priming up to 2.4 m, Santoprene diaphragm, glass filled polypropylene housing, quick connect 3/4″ hose barbs, and internal bypass.
- Description
- Ask a Question
-

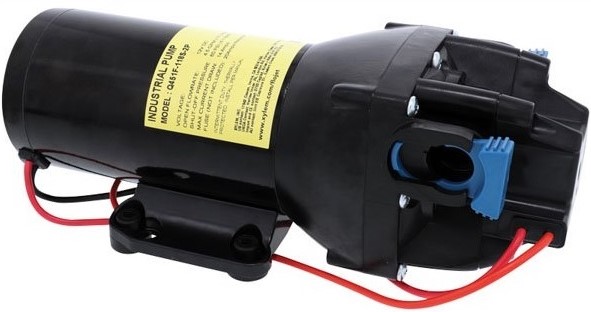

Flojet Q451F-118S-2P - Versijet Series 4 Diaphragm Pump 12V EPDM Check Valve
The Flojet Q451F-118S-2P is a 12V DC 4 chamber diaphragm pump designed for higher flow applications. It features an EPDM check valve and integrated pressure/demand switch for controlled operation.
Performance And Operation
Maximum flow rate of 17.1 LPM with a 4.1 bar switch setting. Includes internal bypass and operates at 14 Amps. Self-priming up to 2.4 m.
Construction
Equipped with Santoprene diaphragm and glass filled polypropylene housing. Quick connect ports with 3/4″ hose barbs. Suitable for fluid temperatures from 4 - 60°C. Designed for intermittent duty.
Technical Data
Voltage 12 Volt DC Current 14 Amps Flow Rate 17.1 LPM Switch Setting 4.1 bar Check Valve EPDM Diaphragm Santoprene Ports Quick Connect with 3/4″ Hose Barbs Self Priming Up to 2.4 m Fluid Temperature 4 - 60°C Housing Glass Filled Polypropylene Duty Intermittent
Brand: Flojet
Article: Q451F-118S-2P -
