The Flojet G56G41MG compressed air double diaphragm pump is designed for draft beer applications, operating with air, nitrogen, or CO2, with adjustable flow, dry self-priming, and compliance with EC 1935/2004, capable of handling up to 270,000 L of beer.
- Description
- Ask a Question
-

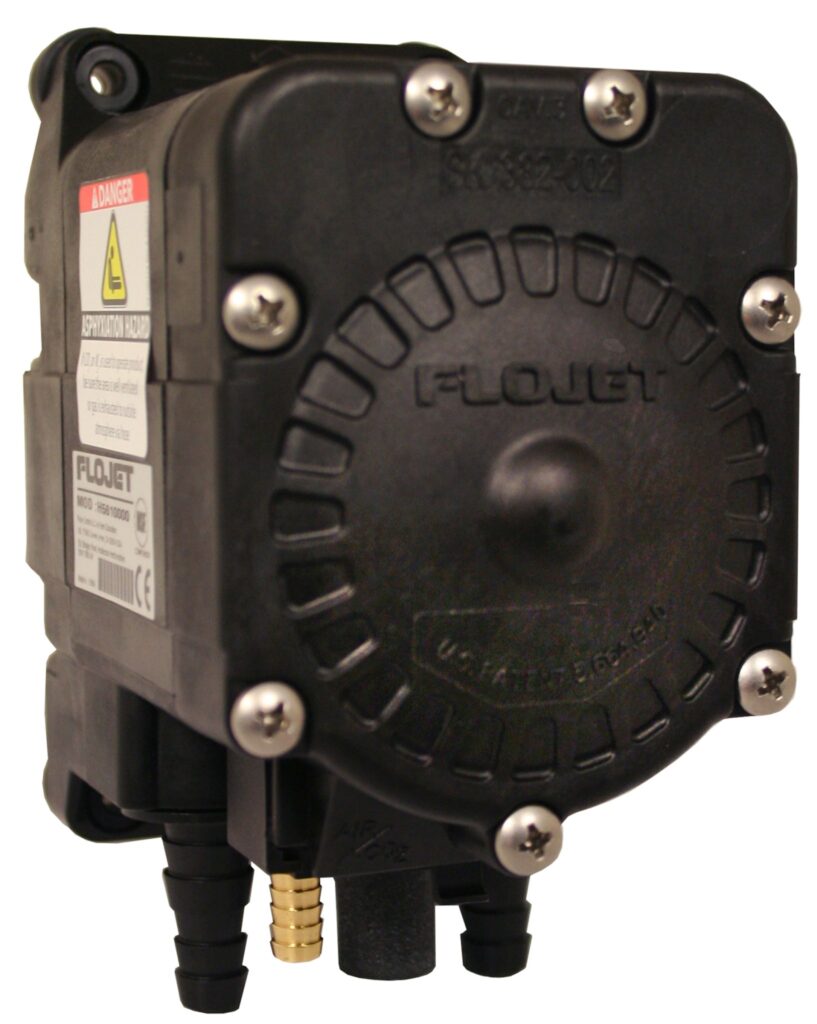

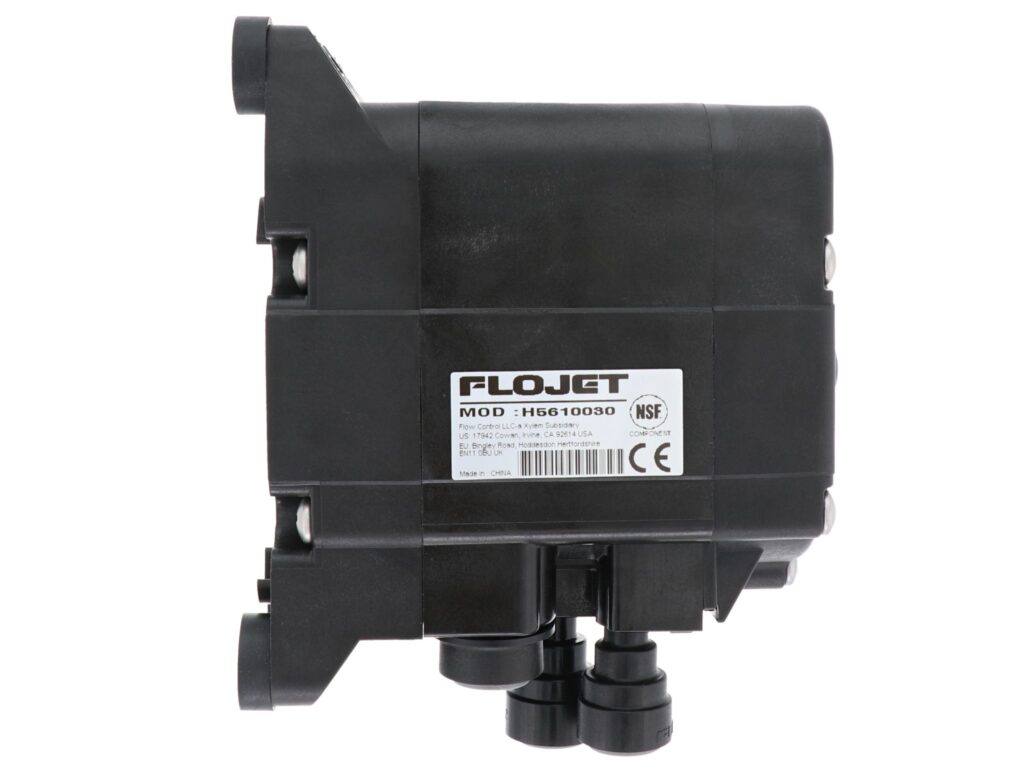

Flojet G56G41MG - G56 Beer Pump
The Flojet G56G41MG is a compressed air double diaphragm pump designed for draft beer applications. Suitable for operation with air, nitrogen, and CO2, the pump allows adjustable flow via the gas or air supply. It delivers reliable beer dispensing with high efficiency and long service life.
Features
- Operates with air, nitrogen, and CO2
- Adjustable via gas/air supply
- Dry self-priming up to 3 m
- Chemical cleaning recommended; use three-way taps and Flow-Reversal Valve for chemical-mechanical recleaning
- Compliant with EC 1935/2004
- Designed to handle up to 270,000 L of beer
Technical Data
Maximum Flow Rate 18.9 l/min Inlet Pressure Max 2.1 bar Delivery Pressure Up to 6.9 bar Connections Beer: 3/8″-1/2″ (9.5-12.7 mm) or Speedfit 3/8″ (9.5 mm), Pressure: 1/4″ (6.35 mm) Working Temperature 1°C - 49°C Weight 0.58 kg Approvals NDF, FDA, CE, SK 382-002
Brand: Flojet
Article: G56G41MG -
