The Flojet VersiJet 5.0 water pressure pump (R8500344A) is a 24V, high-capacity 5-chamber unit rated up to 18.9 L/min with a cut-off pressure of 4.8 bar. It uses EPDM valves and a Santoprene diaphragm, includes a pressure switch that cuts in at approximately 3.5 bar (50 PSI) and cuts out at approximately 4.8 bar (70 PSI), and is self-priming up to approximately 3 m. Supplied with straight 19 mm (3/4 inch) hose connections; max current is 8 A with a recommended 10 A fuse (not included), designed for intermittent operation, and listed as running dry without damage.
- Description
- Ask a Question
-

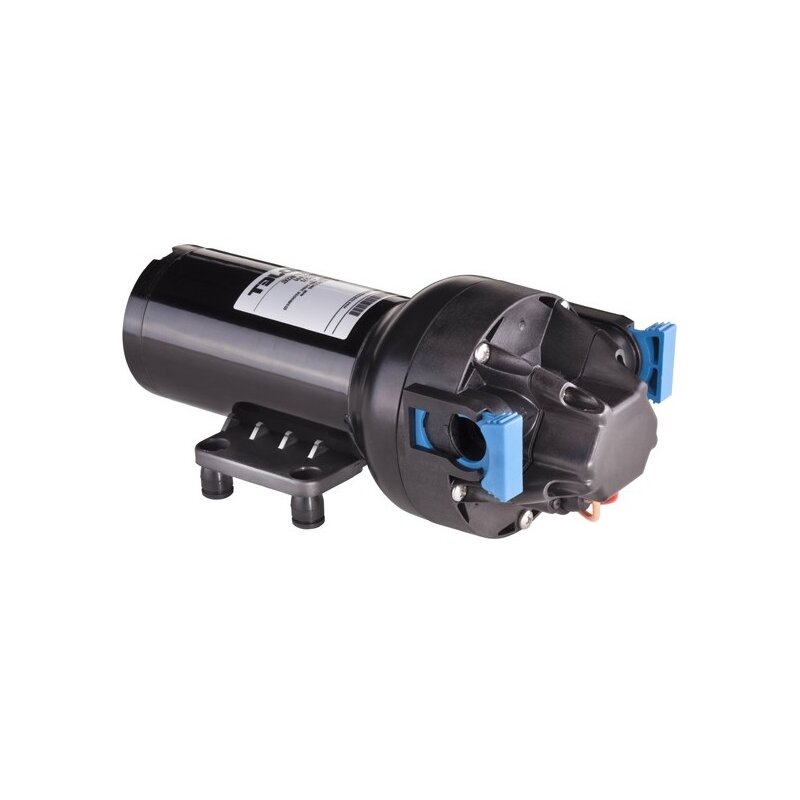

VersiJet 5.0 High-Capacity Water Pressure Pump (24V)
The Flojet R8500344A VersiJet 5.0 is a multi-chamber water pressure pump designed for pressurized water system use. It combines a built-in pressure switch with robust internal materials to support reliable operation, including self-priming capability and the ability to run dry without damage (as stated).
Features
- High capacity 5-chamber water pressure pump with EPDM valves and Santoprene diaphragm
- Output up to 18.9 litres/minute (5 GPM) at open flow
- Pressure switch cuts in at approximately 3.5 bar (50 PSI) and cuts out at approximately 4.8 bar (70 PSI)
- Self-priming up to approximately 3 m
- Runs dry without damage
- Designed for intermittent operation (not continuous operation)
- Included: 19 mm (3/4 inch) straight hose connections
- Max amperage 8 A; recommended fuse size 10 A (not included)
Technical Specifications
Brand Flojet Model VersiJet 5.0 Voltage 24V Max Output 18.9 L/min (5 GPM) at open flow Cut-Off Pressure 4.8 bar (70 PSI) Cut-In Pressure (Pressure Switch) Approximately 3.5 bar (50 PSI) Self-Priming Up to approximately 3 m Pump Chambers 5-chamber Valve Material EPDM Diaphragm Material Santoprene Max Current 8 A Recommended Fuse 10 A (not included) Included Connections 19 mm (3/4 inch) straight hose connections Dimensions (H x W x L) 12.0 x 13.0 x 26.9 cm (width excluding hose ports) Shipping Weight 4.50 kg Product Portfolio Water Pressure Systems; Washdown Pumps
Compatibility
- Alternative to Flojet R8500344A
- Alternative to Flojet R8500-344A
- Alternative to Jabsco 82500-0094
- Alternative to Jabsco 82505-0094
Product Details
- Duty cycle: designed for intermittent operation (not continuous operation)
-
