The Flojet T5001111 is an air-operated diaphragm pump for Bag-in-Box syrup, juice, tea, wine, and liquor dispensing, powered by CO2, nitrogen, or compressed air, delivering 2.5 oz per cycle with high suction to minimize residual, fully automatic with external shutoff, compact design with quick disconnect fittings, self-priming up to 3.05 m, operating at 20-80 psi (1.4-5.5 bar), CE and NSF approved, weighing 0.54 kg.
- Description
- Ask a Question
-

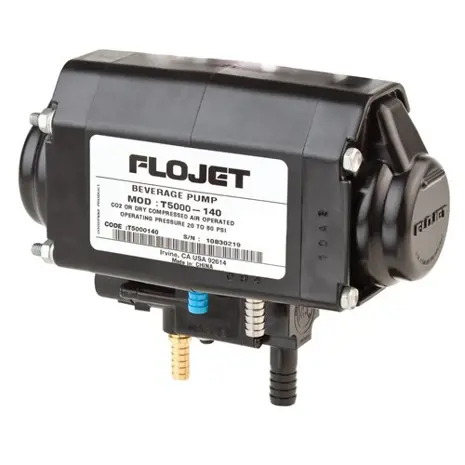

Flojet T5001111 - T5000 Series Air Operated Diaphragm Pump
The Flojet T5001111 is an air-operated diaphragm pump designed for dispensing Bag-in-Box (BIB) syrups, juice concentrate, teas, wines, and liquor. Gas (CO2), nitrogen, or clean compressed air powers the pump, maintaining constant pressure at the dispensing valve. High suction capability empties syrup to a minimum residual. Fully automatic, it operates only when beverage is being dispensed and includes an external auto shutoff. Compact design with quick disconnection fittings allows easy installation.
Technical Data
Pump Type Positive Displacement, Double Diaphragm Power Source CO2, Nitrogen, or Compressed Air Materials (Wetted Parts) Polypropylene, TPE, EPDM, 302/304 Stainless Steel Spring Temperature Limits 34-120°F (1.1-49°C) Weight 1.19 lbs (0.54 kg) Dimensions 5.26" H x 6.18" W x 2.89" D (133.6mm x 156.8mm x 73.5mm) Displacement 2.5 oz per cycle Self-Priming Up to 10 ft (3.05 m) Operating Pressure 20-80 psi (1.4-5.5 bar) Flow Rate 4.0 oz (118.3 ml)/sec - Open Flow Approvals CE, NSF Standard 18, EU Food Directive EC 1935/2004 Warranty 5 years Exhaust Port 1/4" (6.35 mm) barbed CO2
Brand: Flojet
Article: T5001111 -
