The Flojet BevJet Compact diaphragm pump (BLC3011600A) is a 230V unit for dispensing beverages such as wine, fruit juice, tea, and alcoholic drinks from kegs, bottles, or bag-in-box systems. It provides 3.8 L/min at free discharge and shuts off automatically at 2.8 bar (40 PSI), with self-priming up to 1 m and dry-run capability. It supports 1/4 inch (6.35 mm) hose connections or 1/4 inch (9.5 mm) JG quick connectors, draws 2.5A at 1.7 bar, operates from 1.1°C to 49°C, and uses a polypropylene housing with EPDM and Santoprene elastomers; overall size is 19.7 x 10.6 x 6.8 cm.
- Description
- Ask a Question
-

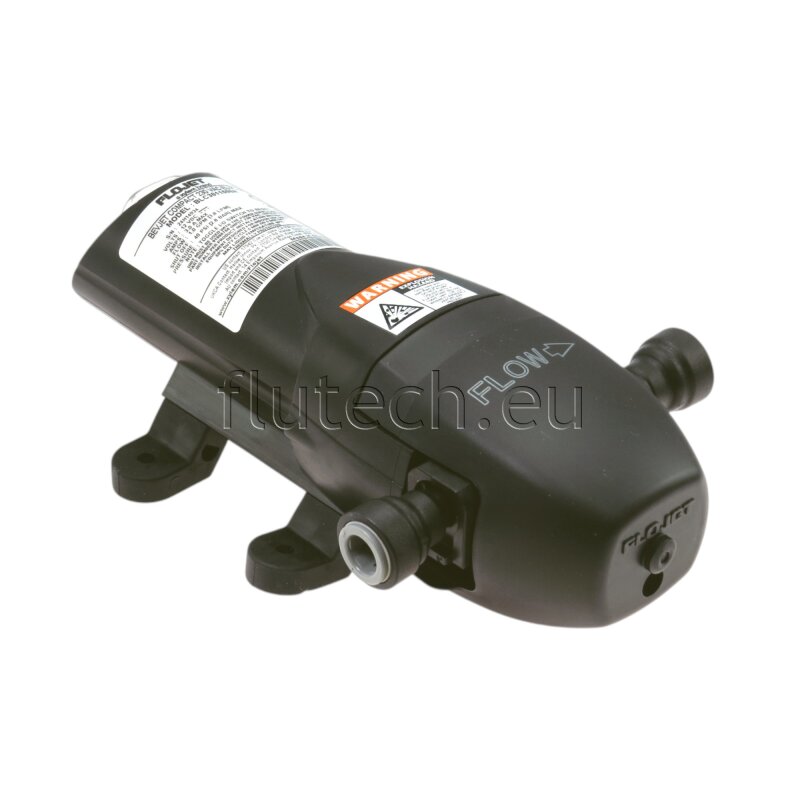

BevJet Compact Beverage Dispensing Diaphragm Pump
The Flojet BLC3011600A BevJet Compact is a compact diaphragm pump developed for dispensing beverages from kegs, bottles, or bag-in-box systems. It is designed for smooth operation, easy cleaning, and automatic shut-off when the container is empty.
Features
- Pumping capacity of 3.8 liters per minute with free discharge (no back pressure)
- Automatic shut-off at 2.8 bar (40 PSI)
- Self-priming up to 1 m
- Dry-run safe
- NSF alcohol approved quick disconnects for easy hose change
Technical Specifications
Brand Flojet Model BLC3011600A Voltage 230V Power Supply 230V / 1 / 50Hz Delivery Rate (Free Discharge) 3.8 L/min Output 4 L/min Cut-Off Pressure 2.8 bar (40 PSI) Self-Priming Up to 1 m Current Draw 2.5A at 1.7 bar Temperature Range (Max.) 1.1°C to 49°C Connections 1/4 inch (6.35 mm) hose connections or 1/4 inch (9.5 mm) JG quick connectors Dimensions (H x W x L) 19.7 cm x 10.6 cm x 6.8 cm Housing Material Polypropylene Elastomers EPDM and Santoprene Product Portfolio Water Pressure Systems Recognized Certifications NSF, CE, UL, RoHS
Product Details
Suitable for bottling wine, juice, pulp-free juice, tea, or alcohol below 15%. If there are uncertainties regarding material compatibility between the pump and the pumped medium, confirm compatibility before operation.
-
