ID
1350470
$ 209.98
1-2 weeks delivery time
-
+
The Flojet RLFP2X003D is a compact RLFP series double diaphragm pump rated for 24V operation, delivering 3.8 L/min (free flow) and automatically switching off at 1.4 bar (20 PSI). It is self-priming up to 1 m, safe to run dry, intended for intermittent use, and includes built-in thermal overload protection. Connections include 3/8 inch (10 mm) hose connections plus a 1/2 inch rubber adapter; power consumption is 2 A, dimensions are 15.0 x 8.0 x 8.0 cm, and the housing is polypropylene with EPDM and Santoprene elastomers.
- Description
- Ask a Question
-

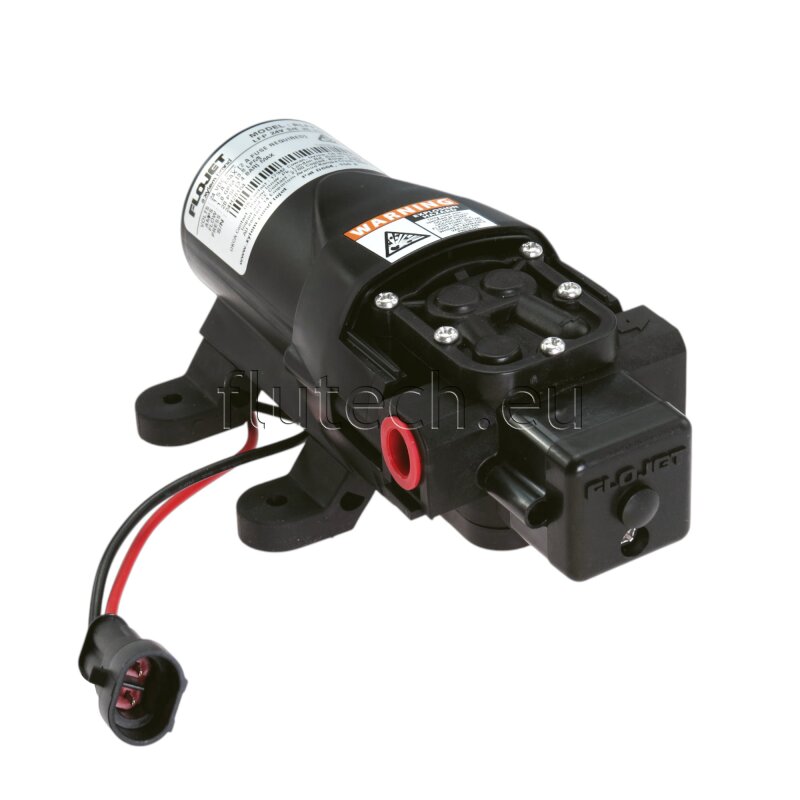

RLFP Series Double Diaphragm Pump (Flojet RLFP2X003D)
The Flojet RLFP2X003D is a compact RLFP series diaphragm pump designed for a wide range of applications, including dispensing alcoholic beverages (such as wine and mulled wine) and use as a dosing pump in cocktail machines. It is designed for intermittent duty, is safe to run dry, and features built-in thermal overload protection.
Technical Specifications
Brand Flojet Series RLFP Voltage 24V Flow Rate (Free Flow) 3.8 L/min Automatic Shutoff Pressure 1.4 bar (20 PSI) Self-Priming Up to 1 m Power Consumption 2 A Connections / Included Adapters 3/8 inch (10 mm) hose connections; 1/2 inch rubber adapter Dimensions (H x W x L) 15.0 cm x 8.0 cm x 8.0 cm Housing Material Polypropylene Elastomers EPDM; Santoprene Certificates (Known) CE; NSF; FDA Product Portfolio Water Pressure Systems; Beverage Pumps
Features
- Dry-run safe design
- Designed for intermittent use
- Built-in thermal overload protection
- Automatic shutoff at 1.4 bar (20 PSI)
- Self-priming up to 1 m
Product Details
If there are uncertainties regarding material compatibility with the pumped medium, check the compatibility of the wetted pump materials with the liquid before putting the pump into operation.
-
