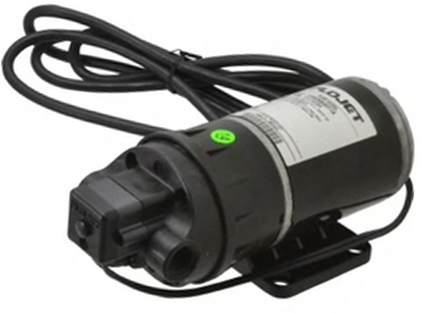

The Flojet D3935H5011 Duplex II series diaphragm pump is a 230V AC demand-duty unit with a 60 PSI pressure switch and a motor supplied with a power cord (no plug). It features a polypropylene body, EPDM diaphragm, Santoprene check valve, and a high-pressure cam, with 3/8 inch NPT female inlet and discharge ports. The pump is self-priming up to 8 ft (2.4 m), can run dry without damage, has a maximum fluid temperature of 140°F, and weighs 6 lbs.
- Description
- Ask a Question
-
Flojet Duplex II Demand-Duty Diaphragm Pump Assembly
The Flojet D3935H5011 is a Duplex II diaphragm pump built for intermittent demand operation in industrial-style applications such as liquid transfer, spraying, cooling, circulation, filtration, and dispensing. It uses an integrated pressure switch to automatically stop flow when discharge pressure rises and restart when pressure drops, and it is designed to self-prime and tolerate short dry-running conditions.
Technical Specifications
Series Duplex II Pump Type Diaphragm pump Body Material Polypropylene Diaphragm Material EPDM Check Valve Material Santoprene Cam High pressure cam Pressure Switch Setting (Off Set Point) 60 PSI Motor Voltage 230 Volts AC Power Cord Yes (no plug) Inlet Port 3/8 inch NPT female Discharge Port 3/8 inch NPT female Self-Priming Up to 8 ft (2.4 m) Dry-Run Capability Can run dry without damage Maximum Fluid Temperature 140°F Weight 6 lbs Maximum Inlet Pressure 30 PSI (2.1 bar)
Features
- Demand-duty operation with integrated pressure switch for automatic shutoff and restart
- Self-priming performance up to 8 ft (2.4 m)
- Dry-run tolerant design for short periods without damage
- Pump head can be rotated in 90-degree increments to simplify plumbing
Product Details
- Intended for intermittent duty cycles; continuous operation is recommended only for short periods of time.
- Do not use to pump flammable fluids (including gasoline, kerosene, fuel oil) and do not use in an explosive environment.
- Notes from the provided guidance: minimum recommended inlet protection is a 40 mesh strainer or filter; if a check valve is installed in the plumbing it should have a cracking pressure of no more than 2 PSI (0.14 bar).
- Available part listed: 20914-003A check valve assembly kit (Duplex II series pumps, 115 VAC).
-
