The Flojet R3426501A is a 12V pressure diaphragm pump for water pressure systems, providing up to 4 L/min (1 GPM) free discharge with a cut-off pressure of approx. 1.7 bar (25 psi). The integrated pressure switch turns on at approx. 1 bar (15 psi) and off at approx. 1.7 bar, and the triplex 3-chamber design uses a Santoprene diaphragm with EPDM valves. It is self-priming up to 1.8 m, can run dry without damage, includes a bypass for smoother flow, and is supplied with two 10 mm (3/8 inch) push-in hose connections; power draw is 2.6 A with a recommended 5 A fuse, dimensions are 12.1 cm (H) x 10.8 cm (W, without connections) x 22.9 cm (L), and shipping weight is 2.30 kg.
- Description
- Ask a Question
-

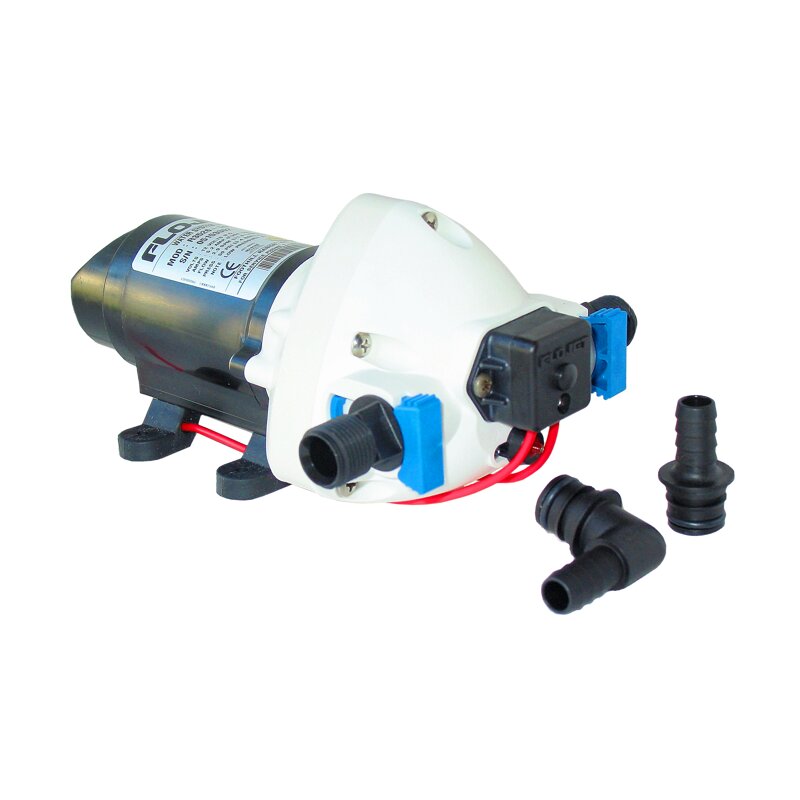

Flojet R3426501A Triplex Diaphragm Water Pressure Pump 12V
The Flojet R3426501A is a 12V diaphragm pressure pump for water pressure systems, typically used in drinking water installations with 1–2 taps. It uses an integrated pressure switch for automatic operation and includes a bypass to help deliver a more even flow.
Technical Specifications
Brand Flojet Product Portfolio Water Pressure Systems Voltage 12V Max Flow Rate (Free Discharge) Up to 4 L/min (1 GPM) Cut-Off Pressure Approx. 1.7 bar (25 psi) Pressure Switch Settings On at approx. 1 bar (15 psi); off at approx. 1.7 bar (25 psi) Diaphragm / Valve Materials 3-chamber Santoprene diaphragm; EPDM valves Self-Priming Up to 1.8 m Dry-Running Capability Can run dry without damage Bypass Yes (for a more even flow rate) Current Draw 2.6 A Fuse 5 A Included Connections Push-in connections, 2 x 10 mm (3/8 inch) hose connection Dimensions (H x W x L) 12.1 cm x 10.8 cm (without connections) x 22.9 cm Shipping Weight 2.30 kg
Features
- Flow rate up to 4 L/min (1 GPM) with free discharge
- Automatic operation via integrated pressure switch
- Triplex 3-chamber design
- Santoprene diaphragm with EPDM valves
- Self-priming up to 1.8 m
- Can run dry without damage
- Bypass for a more even flow rate
- Supplied with 2 x 10 mm (3/8 inch) push-in hose connections
Product Details
Note: The R3426501A is a specially configured pump for certain caravan manufacturers. Information on the type plate may differ or be incorrect. Please contact us if you have any questions.
-
