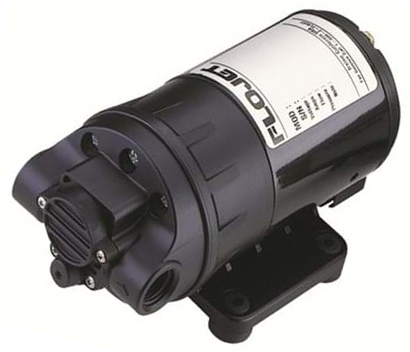

The Flojet D1625H1411A Duplex II diaphragm pump assembly is a 115V AC unit with a 70 PSI external pressure bypass and no switch (manual on/off). It features polypropylene body construction with an EPDM diaphragm, Santoprene check valve, and a medium-pressure cam, plus 3/8 inch NPT female inlet and 3/8 inch NPT female discharge ports. The pump is self-priming up to 8 ft (2.4 m), can run dry without damage, operates on 50/60 Hz power, has a maximum temperature rating of 140 F, weighs 5 lbs, and is intended for intermittent duty (not recommended for continuous duty service).
- Description
- Ask a Question
-
Duplex II Medium-Pressure Diaphragm Pump With External Bypass
The Flojet D1625H1411A is a Duplex II series diaphragm pump configured for medium-pressure applications where an external bypass is used to manage outlet pressure. It is designed for tasks such as liquid transfer, spraying, cooling, circulation, filtration, and dispensing, and it will continue to run until power is manually turned off.
Technical Specifications
Series Flojet Duplex II Motor Voltage 115V AC Frequency 50/60 Hz Body Construction Polypropylene Diaphragm Material EPDM Check Valve Material Santoprene Cam Medium Pressure Switch No switch Pressure Bypass 70 PSI (external bypass; internal flow bypass when pressure is over 70 PSI) Self-Priming Up to 8 ft (2.4 m) Run-Dry Capability Can run dry without damage Inlet Port 3/8 inch NPT female Discharge Port 3/8 inch NPT female Maximum Inlet Pressure 30 PSI (2.1 bar) Maximum Temperature 140 F Weight 5 lbs
Features
- External bypass system that bypasses flow internally when pressure is over 70 PSI
- Intermittent-duty design; can be run continuously for short periods, but not recommended for continuous duty service due to limited motor brush life
- Pump head can be rotated in 90-degree increments to simplify plumbing
- Suitable for a broad range of chemicals (material selection as listed in specifications)
Product Details
- Safety limitations: Do not use to pump flammable fluids (gasoline, kerosene, fuel oil, etc.) and do not use in an explosive environment.
- Priming guidance: To start and prime, keep the discharge line open to allow trapped air to escape and avoid airlock.
- Plumbing guidance: Use flexible hose with the correct pressure rating and compatibility with the fluid. Recommended tubing is a minimum of 3/8 inch ID and at least 20 inches in length; do not crimp or kink.
- Check valve note: If a check valve is installed in the plumbing, cracking pressure must be no more than 2 PSI (0.14 bar) to avoid interfering with priming.
- Inlet protection: Use a minimum 40 mesh strainer or filter on the inlet line to help prevent debris from entering the pump.
Available Parts
- Catalog # 20914-003A — Check Valve Assembly Kit (Duplex II Series Pumps, 115 VAC)
-
