The Flojet D2131I1311A Duplex II diaphragm pump is a 12V DC unit with a polypropylene body, Viton diaphragm, Buna check valve, and a medium-pressure cam. It has no switch and uses an external pressure bypass set to 50 PSI, with 3/8 inch NPT female inlet and discharge ports. The pump is self-priming up to 8 ft (2.4 m), can run dry without damage, has a maximum temperature rating of 140°F, and weighs 5 lb.
- Description
- Ask a Question
-

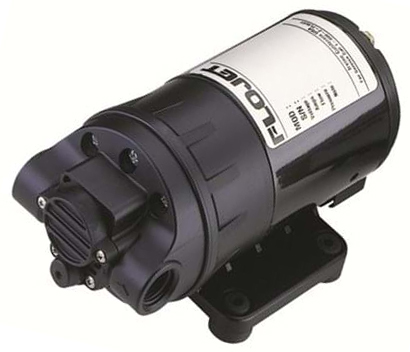

Flojet Duplex II 12V DC Diaphragm Pump Assembly
The Flojet D2131I1311A is a Duplex II series diaphragm pump built for liquid handling tasks such as transfer, spraying, cooling, circulation, filtration, and dispensing. It is designed to run with a manual on/off control (no switch on the pump) and uses an external bypass system to internally bypass flow when system pressure exceeds its bypass setting.
Technical Specifications
Series Duplex II Pump Type Diaphragm Pump Motor Voltage 12V DC Body Material Polypropylene Diaphragm Material Viton Check Valve Material Buna Cam Medium Pressure Cam Switch No Switch Pressure Bypass 50 PSI Inlet Port 3/8 inch NPT Female Discharge Port 3/8 inch NPT Female Self-Priming Up to 8 ft (2.4 m) Maximum Fluid Temperature 140°F Maximum Inlet Pressure 30 PSI (2.1 bar) Check Valve Cracking Pressure (If Used in Plumbing) Max 2 PSI (0.14 bar) Weight 5 lb
Features
- External bypass system that internally bypasses flow when pressure is over 50 PSI
- Self-priming capability up to 8 ft (2.4 m)
- Can run dry without damage
- Pump head can be rotated in 90-degree increments to simplify plumbing
- Designed for high-pressure pumping at low or high flow rates and will continue to run until power is manually turned off
Product Details
- Intended for intermittent duty cycles; it can be run continuously for short periods of time and is not recommended for continuous duty service due to limited motor brush life.
- Typical uses include liquid transfer, spraying, cooling, circulation, filtration, and dispensing; generally used for general agricultural applications.
- Mount in a dry, adequately ventilated area. If installed outdoors, shield the pump from water, dust, sunlight, and wash-down spray.
- Use tubing with a minimum of 3/8 inch ID and at least 20 inches in length to reduce stress on ports; do not crimp or kink the tubing.
- Use of a minimum 40 mesh strainer or filter in the inlet line is recommended to help prevent debris from entering the system.
- Not recommended to use metal fittings.
- Do not use to pump flammable fluids (including gasoline, kerosene, fuel oil) and do not use in an explosive environment.
- Electrical note (12V DC): red lead is positive and connects to battery plus; black lead is ground and connects to battery minus; use T6 AWG wire minimum and a fuse to protect system wiring and components.
-
