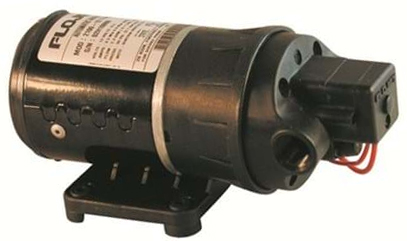

The Flojet D3621V5011B Duplex II diaphragm pump is a 115V AC demand-duty unit with a 60 PSI pressure switch, polypropylene body construction, a Viton diaphragm, Viton check valves, and a low-pressure cam. It uses 3/8 inch NPT female inlet and 3/8 inch NPT female discharge ports, is self-priming up to 8 ft (2.4 m), can run dry without damage, operates on 50/60 Hz power, has a maximum temperature rating of 140°F, and weighs 5 lb.
- Description
- Ask a Question
-
Flojet Duplex II Demand Diaphragm Pump With 60 PSI Pressure Switch
The Flojet D3621V5011B is a Duplex II series diaphragm pump assembly built for general industrial use across a wide range of liquid-handling tasks. It is equipped with an integral pressure switch for demand operation, automatically stopping when discharge pressure reaches the switch set point and restarting when pressure drops as a valve is opened.
Technical Specifications
Series Duplex II Pump Type Diaphragm pump Duty Type Demand duty (intermittent duty application) Body Material Polypropylene Diaphragm Material Viton Check Valve Material Viton Cam Low pressure cam Pressure Switch Setting (Off Set Point) 60 PSI Motor Voltage 115V AC Frequency 50/60 Hz Self-Priming Up to 8 ft (2.4 m) Max Fluid Temperature 140°F Inlet Port 3/8 inch NPT female Discharge Port 3/8 inch NPT female Inlet Pressure Limit 30 PSI (2.1 bar) max Weight 5 lb
Features
- Demand operation: pressure switch shuts the pump off at 60 PSI when the discharge valve is closed and restarts when pressure drops
- Run-dry capable: can run dry without damage
- Self-priming: up to 8 ft (2.4 m) (vertical prime may vary with viscosity, suction tube size, foot valve, and configuration)
- Pump head can be rotated in 90-degree increments to simplify plumbing
Product Details
- Typical uses listed include liquid transfer, spraying, cooling, circulation, filtration, and dispensing.
- For installation, the pump should be mounted in a dry and adequately ventilated area; if used outdoors it should be shielded from water, dust, sunlight, and wash-down spray.
- Do not use to pump flammable fluids (including gasoline, kerosene, and fuel oil) and do not use in an explosive environment.
- Minimum tubing guidance provided: 3/8 inch ID and at least 20 inches long to reduce stress on ports; do not crimp or kink tubing.
- Strainer guidance provided: use a minimum 40 mesh strainer or filter in the inlet line to help prevent debris ingestion.
- Electrical guidance provided: wire per applicable electrical and safety codes; for this 115V AC pump the black lead is live/common, the white lead is neutral, and the green/yellow lead is ground.
-
