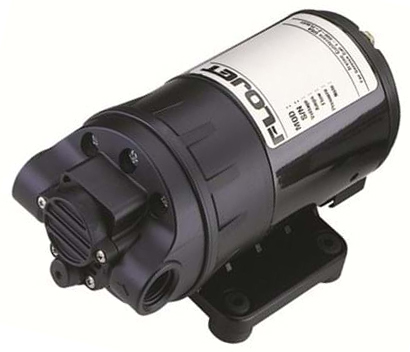

The Flojet D3621V1211B Duplex II diaphragm pump is a 115V AC unit with a polypropylene body, Viton diaphragm, and Viton check valves. It uses a low-pressure cam, has no switch, and includes an external 30 PSI pressure bypass that recirculates flow internally above the bypass setting. Ports are 3/8 inch NPT female inlet and 3/8 inch NPT female discharge; the pump is self-priming up to 8 ft (2.4 m), can run dry without damage, is rated for 50/60 Hz, has a maximum temperature of 140°F, and weighs 5 lb.
- Description
- Ask a Question
-
Flojet Duplex II Diaphragm Pump With 30 PSI Bypass
The Flojet D3621V1211B is a Duplex II series diaphragm pump designed for general industrial fluid handling, including liquid transfer, spraying, cooling, circulation, filtration, and dispensing. It is built with a polypropylene pump body and Viton wet-end components, and it uses an external bypass system to internally bypass flow when pressure exceeds the bypass setting. The pump is designed to continue running until power is manually turned off.
Technical Specifications
Series Duplex II Pump Type Diaphragm pump Body Material Polypropylene Diaphragm Material Viton Check Valve Material Viton Cam Low pressure cam Switch No switch Pressure Bypass 30 PSI Motor Voltage 115V AC Frequency 50/60 Hz Self-Priming Up to 8 ft (2.4 m) Max Temperature 140°F Inlet Port 3/8 inch NPT female Discharge Port 3/8 inch NPT female Weight 5 lb Inlet Pressure Limit Max 30 PSI (2.1 bar)
Features
- External 30 PSI bypass that bypasses flow internally when pressure is over 30 PSI
- Self-priming capability up to 8 ft (2.4 m)
- Can run dry without damage
- Pump head can be rotated in 90-degree increments to simplify plumbing
Product Details
- Designed for intermittent duty cycles; not recommended for continuous duty service due to limited motor brush life
- For priming, the discharge line must be open to allow trapped air to escape and avoid airlock
- Recommended minimum tubing: 3/8 inch ID and at least 20 inches length (to reduce stress on ports)
- Use of a minimum 40 mesh strainer or filter on the inlet line is recommended to help prevent debris ingestion
- Important safety guidance provided: do not use to pump flammable fluids (gasoline, kerosene, fuel oil, etc.) and do not use in an explosive environment
-
