The Flojet D3131B5011AR duplex diaphragm pump operates on 12V DC and delivers up to 6 L/min open flow with a 4.2 bar cut-off pressure switch. It starts at 2.1 bar (40 PSI) and stops at 4.2 bar (60 PSI), includes a bypass, and uses Buna valves/diaphragms with a polypropylene pump body. The unit is self-priming up to 2.4 m, can run dry without damage, is rated for intermittent duty, and is specified for temperatures up to 60°C; dimensions are 92x82x201 mm and shipping weight is 2.40 kg.
- Description
- Ask a Question
-

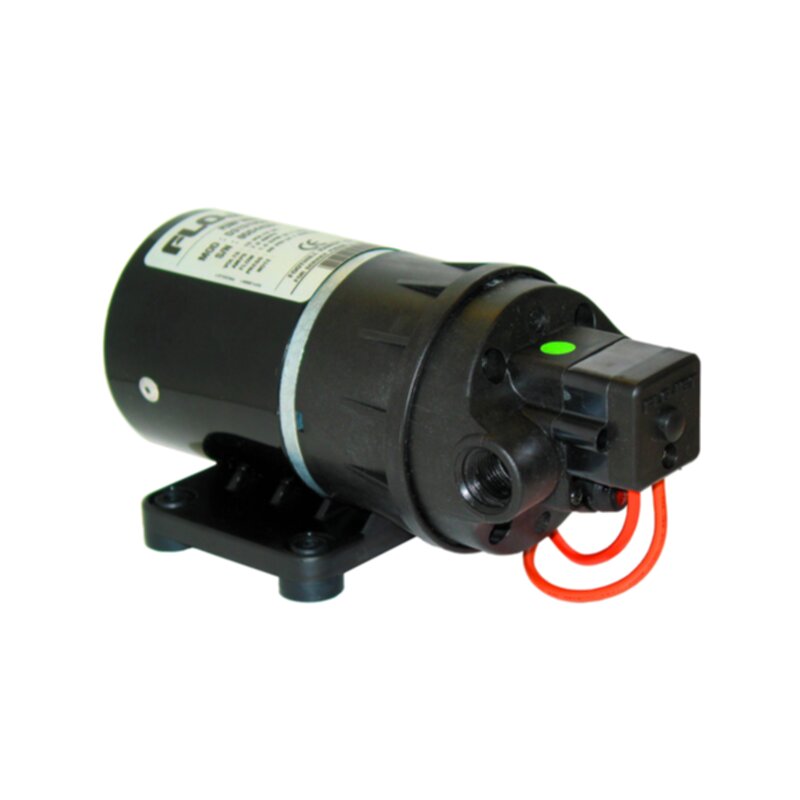

Duplex II 12V Diaphragm Pump With Bypass
The Flojet D3131B5011AR is a Duplex II diaphragm pump designed for 12V DC systems. It provides automatic on/off operation via an integrated pressure switch and includes a bypass function for system performance. The pump is self-priming and can run dry without damage for intermittent-duty applications.
Technical Specifications
Brand Flojet Voltage 12V Max Output 6 L/min (open flow) Cut-Off Pressure 4.2 bar (60 PSI) Cut-In Pressure 2.1 bar (40 PSI) Bypass Yes Port Thread 9.5 mm (3/8 inch) NPTF female Valve/Diaphragm Material Buna/Buna Pump Body Material Polypropylene Self-Priming Up to 2.4 m Max Temperature 60�C Duty Rating Intermittent duty Dry-Run Capability Can run dry without damage Dimensions (H x W x L) 92 x 82 x 201 mm Shipping Weight 2.40 kg Certifications NSF, FDA, UL, CSA, CE
Product Details
- Pump starts automatically when system pressure drops below 2.1 bar (40 PSI)
- Pump switches off when pressure reaches 4.2 bar (60 PSI)
- Suitable for operation up to a maximum of 60�C
Compatibility
- Alternative to Flojet R3811343A
- Alternative to Flojet R3811-343A
- Alternative to Flojet 03811343A
- Alternative to Flojet 03811-343A
-
