The Flojet Duplex II series diaphragm pump is a 230 Volts AC demand-duty unit with a 100 PSI pressure switch, polypropylene body construction, an EPDM diaphragm, and EPDM check valves with a medium pressure cam. It has 3/8 inch NPT female inlet and 3/8 inch NPT female discharge ports, is self-priming up to 8 ft (2.4 m), can run dry without damage, operates on 50/60 Hz, has a maximum fluid temperature of 140°F, and weighs 5 lbs.
- Description
- Ask a Question
-

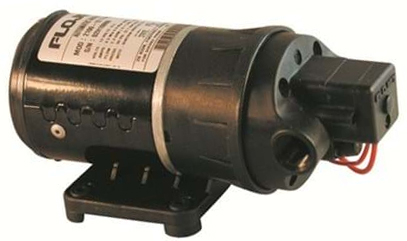

Flojet Duplex II Demand Diaphragm Pump With Pressure Switch
The Flojet D1725E7012 is a Duplex II diaphragm pump assembly built for general liquid handling tasks where automatic pressure-controlled on/off operation is required. It is designed for applications such as liquid transfer, spraying, cooling, circulation, filtration, and dispensing, and uses a pressure switch to stop the pump when discharge pressure reaches the switch set point.
Technical Specifications
Series Duplex II Pump Type Diaphragm pump Body Material Polypropylene Diaphragm Material EPDM Check Valve Material EPDM Cam Medium pressure cam Pressure Switch 100 PSI Motor Voltage 230 Volts AC Frequency 50/60 Hz Inlet Port 3/8 inch NPT female Discharge Port 3/8 inch NPT female Self-Priming Up to 8 ft (2.4 m) Dry-Run Capability Can run dry without damage Maximum Temperature 140°F Maximum Inlet Pressure 30 PSI (2.1 bar) Weight 5 lbs
Features
- Demand operation with pressure switch shutoff at 100 PSI when the discharge valve is closed
- Self-priming performance up to 8 ft (2.4 m); vertical prime depends on fluid viscosity and installation conditions
- Pump head can be rotated in 90-degree increments to simplify plumbing
- Designed to handle a broad range of chemicals due to material selection
Product Details
- Intended for intermittent duty cycles; can be run continuously for short periods (higher duty cycle reduces expected life).
- Do not use to pump flammable fluids (gasoline, kerosene, fuel oil, etc.) and do not use in an explosive environment.
- Mount in a dry, adequately ventilated area; if installed outdoors, shield from water, dust, sunlight, and washdown spray.
- For priming, keep the discharge line open to allow trapped air to escape and avoid airlock.
- Recommended inlet protection: minimum 40 mesh strainer or filter to reduce debris entering the pump.
- Tubing guidance: minimum 3/8 inch ID and at least 20 inches long; avoid kinks or crimps.
- If a check valve is installed in the plumbing, it must have a cracking pressure of no more than 2 PSI (0.14 bar).
- Electrical lead identification for this 230V AC pump: brown = live/common, blue = neutral, green/yellow = ground.
-
