ID
1303237
$ 1,962.83
1-2 weeks delivery time
-
+
The Isotemp 607523B000003 Basic 75L marine water heater features a 20-gallon stainless-steel tank, a 115V/750W immersion heater and an integrated mixing valve. Low-mounted heating components ensure even heat distribution, while optimized inlet/outlet geometry reduces cold-water mixing, providing large-volume, stable hot-water output for bigger onboard systems.
- Description
- Ask a Question
-

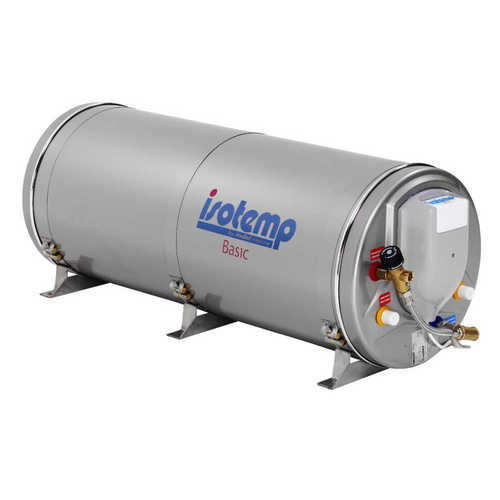

Isotemp 607523B000003 Basic 75L Water Heater 115V / 750W with Mixing Valve
The Isotemp 607523B000003 Basic 75L (20-gallon) marine water heater is designed for vessels that require substantial hot-water capacity and consistent heating performance. Built with a brushed stainless-steel tank and an optimized internal configuration, it places both the 115V / 750W immersion heater and the engine-water heat exchanger at the lowest point of the tank to improve heat transfer and maintain uniform temperature throughout the full 75-liter volume.
With specially engineered inlet/outlet geometry that minimizes mixing between incoming cold water and stored hot water, this model provides a significantly larger usable hot-water volume. A thermostat-controlled mixing valve ensures stable outlet temperatures, even under varying thermal loads typical in marine environments.Key Features
- Large 75-liter (20-gallon) stainless-steel marine water heater.
- 115V / 750W immersion heating element.
- Integrated thermostat-controlled mixing valve.
- Engine-water heat exchanger for secondary heating capability.
- Low-mounted heating components for uniform temperature distribution.
- Optimized inlet/outlet port geometry reducing cold-water intrusion.
- Marine-grade brushed stainless-steel construction.
- Ideal for large yachts, cruisers and extended cruising applications.
Technical Specifications
Part Number 607523B000003 Model Basic 75L Water Heater Capacity 75 L / 20 gallons Voltage / Power 115V AC / 750W Tank Material Brushed stainless steel Dimensions Length: 48 in
Outside Diameter (OD): 23 inUnit Weight 65 lbs Volume (Cubic Feet) 20 Special Instructions Supplied with thermostat-controlled mixing valve
Included in the Package
- Isotemp Basic 75L stainless-steel water heater
- 115V / 750W immersion heating element
- Engine-water heat exchanger connections
- Thermostat-controlled mixing valve
- Installation and safety documentation
The Isotemp Basic 75L 115V model provides large-volume hot-water capability, consistent heating performance and rugged marine-grade durability—an excellent choice for vessels with high-demand onboard hot-water systems.
Documents
Isotemp Basic Slim Water Heater Manual Size: 6,6 MbIsotemp Basic Slim Water Heater Spare Parts List Size: 798,6 Kb -
