ID
1303236
$ 1,610.09
1-2 weeks delivery time
-
+
The Isotemp 6050B1B000003 Basic 50L marine water heater features a 13-gallon stainless-steel tank equipped with a high-output 230V/1200W immersion heater and an integrated mixing valve. Low-mounted heating elements ensure uniform heating, while optimized inlet/outlet geometry reduces cold-water mixing, delivering fast warm-up performance and high usable hot-water output for large onboard systems.
- Description
- Ask a Question
-

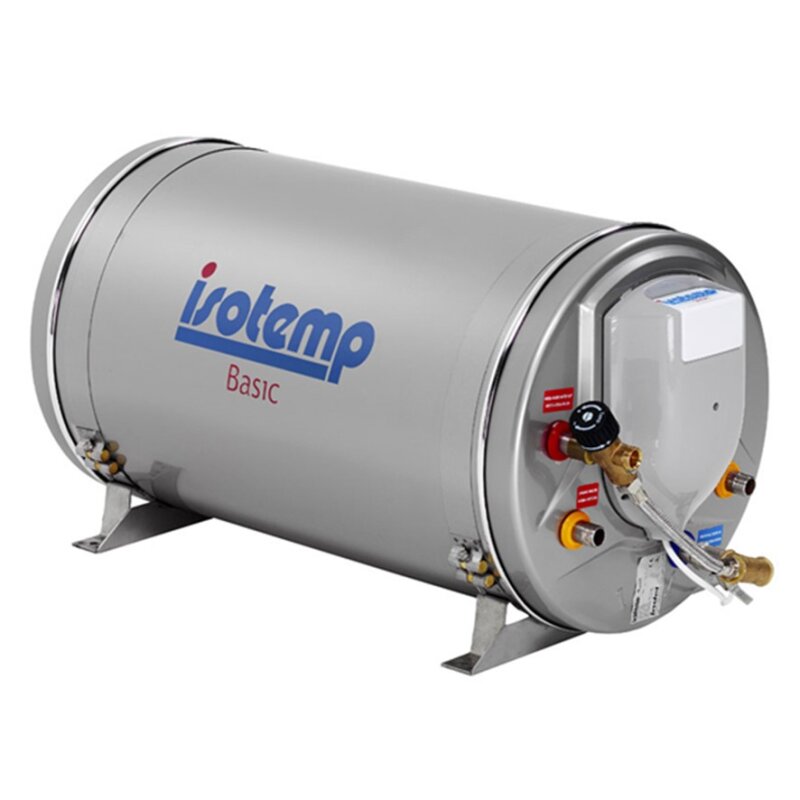

Isotemp 6050B1B000003 Basic 50L Water Heater 230V / 1200W with Mixing Valve
The Isotemp 6050B1B000003 Basic 50L (13-gallon) marine water heater is a high-performance unit designed for vessels requiring rapid heating and large hot-water capacity. Its enhanced 230V / 1200W immersion heater offers significantly faster warm-up times compared with standard 750W configurations. The heater and the engine-water heat exchanger are positioned at the lowest part of the stainless-steel tank to maximize heat transfer and maintain even temperature distribution across the full 50-liter volume.
The inlet/outlet geometry is engineered to minimize mixing between cold and hot water, increasing effective hot-water availability. A built-in thermostat-controlled mixing valve ensures stable and safe outlet temperatures under varying onboard thermal loads.Key Features
- 50-liter (13-gallon) stainless-steel marine water heater.
- High-output 230V / 1200W immersion heating element for faster heating cycles.
- Integrated thermostat-controlled mixing valve.
- Engine-water heat exchanger for secondary heating capability.
- Low-mounted heater and exchanger for uniform heating efficiency.
- Optimized inlet/outlet design reducing cold-water mixing.
- Marine-grade brushed stainless-steel construction.
- Ideal for large yachts, motorboats and high-demand hot-water systems.
Technical Specifications
Part Number 6050B1B000003 Model Basic 50L – High Power 1200W Version Capacity 50 L / 13 gallons Voltage / Power 230V AC / 1200W Tank Material Brushed stainless steel Dimensions Length: 31 in
Outside Diameter (OD): 16 inUnit Weight 55 lbs Volume (Cubic Feet) 13 Special Instructions Equipped with thermostat-controlled mixing valve
Included in the Package
- Isotemp Basic 50L stainless-steel water heater
- 230V / 1200W immersion heating element
- Engine-water heat exchanger connections
- Thermostat-controlled mixing valve
- Installation and safety documentation
The Isotemp Basic 50L 1200W heater provides rapid hot-water generation, large capacity and rugged marine-grade durability—an excellent choice for vessels with high onboard hot-water requirements.
Documents
Isotemp Basic Slim Water Heater Manual Size: 6,6 MbIsotemp Basic Slim Water Heater Spare Parts List Size: 798,6 Kb -
