ID
1303265
$ 1,341.15
1-2 weeks delivery time
-
+
The Isotemp 601623QX00003 Slim Square 16L marine water heater features a 4.2-gallon stainless-steel tank, a 115V/750W immersion heater and a mixing valve. With a compact square footprint and low-mounted heating components for even temperature distribution, it offers high efficiency in confined installation spaces.
- Description
- Ask a Question
-

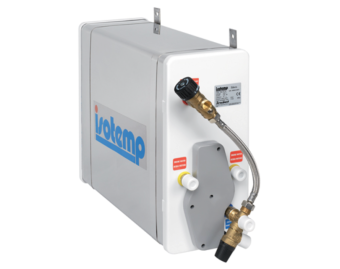

Isotemp 601623QX00003 Slim Square 16L Water Heater 115V / 750W with Mixing Valve
The Isotemp 601623QX00003 Slim Square 16L (4.2-gallon) marine water heater is engineered for boats requiring reliable hot-water production in tight installation spaces. Its compact square form factor allows flexible mounting, while the brushed stainless-steel tank ensures long-term corrosion resistance in marine environments.
The internal layout places both the 115V / 750W immersion heater and the engine-water heat exchanger at the lowest point of the tank, maximizing thermal efficiency and ensuring even heating across the full 16-liter volume. Cold and hot-water ports are optimized to minimize mixing inside the tank, increasing the effective amount of usable hot water. A thermostat-controlled mixing valve stabilizes outlet temperature for safe onboard operation.Key Features
- Compact Slim Square 16-liter (4.2-gallon) stainless-steel marine water heater.
- 115V / 750W immersion heating element.
- Square profile ideal for tight installation spaces.
- Engine-water heat exchanger for secondary heating.
- Integrated thermostat-controlled mixing valve.
- Low-mounted heater and exchanger for uniform heat distribution.
- Optimized inlet/outlet design reducing cold-water mixing.
- Brushed stainless-steel construction for marine durability.
- Suitable for compact yachts, sailboats, and auxiliary installations.
Technical Specifications
Part Number 601623QX00003 Model Slim Square 16L Capacity 16 L / 4.2 gallons Voltage / Power 115V AC / 750W Tank Material Brushed stainless steel Dimensions Height: 16.75 in
Width: 7.25 in
Depth: 23.25 inUnit Weight 41 lbs Volume (Cubic Feet) 4.2 Special Instructions Includes thermostat-controlled mixing valve
Included in the Package
- Isotemp Slim Square 16L stainless-steel water heater
- 115V / 750W immersion heating element
- Engine-water heat exchanger connections
- Thermostat-controlled mixing valve
- Installation and safety documentation
The Isotemp Slim Square 16L model delivers efficient hot-water performance in a compact footprint, making it ideal for confined engine rooms and smaller vessel installations requiring dependable marine heating.
Documents
Isotemp Basic Slim Water Heater Spare Parts List Size: 798,6 KbIsotemp Basic Slim Water Heater Manual Size: 6,6 Mb -
