The Isotemp 607591BD00003 Basic 75L HD heater features a 20-gallon stainless-steel tank, a high-power 230V/2000W immersion heater, double heat-exchange coils and an integrated mixing valve. With low-mounted heating components for uniform temperature distribution and optimized inlet/outlet design to reduce cold-water mixing, it delivers extremely fast heat-up times and large-volume hot water for demanding marine systems.
- Description
- Ask a Question
-

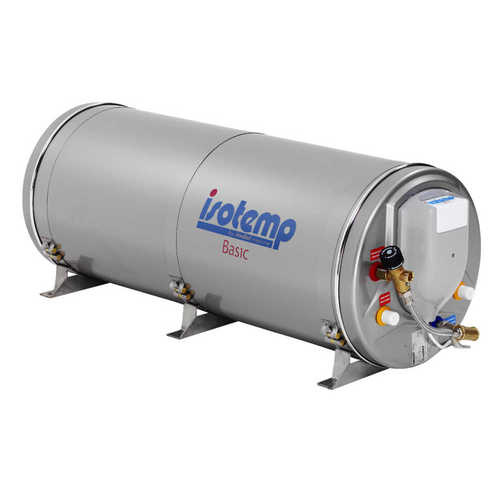

Isotemp 607591BD00003 Basic 75L Water Heater 230V / 2000W (HD) with Double Coil and Mixing Valve
The Isotemp 607591BD00003 Basic 75L (20-gallon) marine water heater is the heavy-duty, dual-coil version designed for vessels requiring rapid heating, multi-circuit integration and high hot-water availability. Equipped with a 230V / 2000W heavy-duty immersion heater and two independent engine-water heat-exchange coils, this model delivers exceptional thermal performance and flexibility.
The immersion heater and dual coils are positioned at the lowest part of the brushed stainless-steel tank to maximize heat transfer and ensure uniform heating across the entire 75-liter capacity. Optimized inlet/outlet geometry minimizes cold-water intrusion, increasing effective usable hot-water volume. An integrated thermostat-controlled mixing valve stabilizes outlet temperature under variable load conditions.Key Features
- Large 75-liter (20-gallon) stainless-steel marine water heater.
- Heavy-duty 230V / 2000W immersion heater for ultra-fast heating.
- Double engine-water heat-exchange coils for multi-circuit installations.
- Integrated thermostat-regulated mixing valve.
- Low-mounted heater and coils for uniform thermal distribution.
- Cold-/hot-water port geometry reducing thermal mixing.
- Marine-grade brushed stainless-steel construction.
- Ideal for large yachts, expedition vessels and commercial marine systems.
Technical Specifications
Part Number 607591BD00003 Model Basic 75L – HD 2000W Double Coil Capacity 75 L / 20 gallons Voltage / Power 230V AC / 2000W Heat Exchanger Double engine-water coils Tank Material Brushed stainless steel Dimensions Length: 48 in
Outside Diameter (OD): 23 inUnit Weight 65 lbs Volume (Cubic Feet) 20 Special Instructions Supplied with mixing valve and dual heat-exchange coils
Included in the Package
- Isotemp Basic 75L stainless-steel double-coil water heater
- 230V / 2000W HD immersion heating element
- Dual engine-water heat exchanger connections
- Thermostat-controlled mixing valve
- Installation and safety documentation
The Isotemp 75L HD Double-Coil model provides exceptional hot-water capacity, ultra-fast heat-up performance and robust stainless-steel construction—ideal for the most demanding marine environments and multi-source heating configurations.
Documents
Isotemp Basic Slim Water Heater Manual Size: 6,6 MbIsotemp Basic Slim Water Heater Spare Parts List Size: 798,6 Kb -
