The Isotemp 607583B000003 Basic 75L HD marine water heater features a 20-gallon stainless-steel tank with a high-output 115V/1200W immersion heater and an integrated mixing valve. Low-mounted heating components provide uniform temperature distribution, while optimized inlet/outlet geometry reduces cold-water mixing for fast heat-up time and large-volume hot-water delivery on demanding marine systems.
- Description
- Ask a Question
-

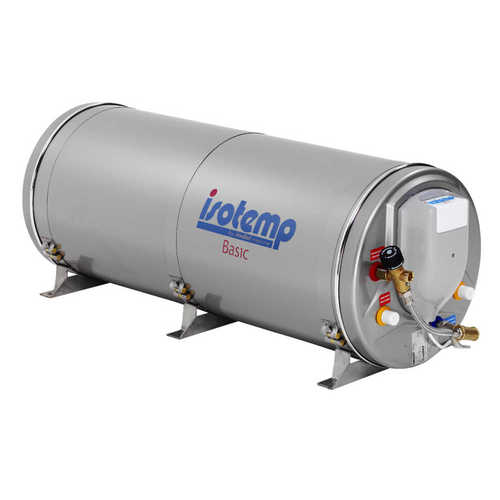

Isotemp 607583B000003 Basic 75L Water Heater 115V / 1200W (HD) with Mixing Valve
The Isotemp 607583B000003 Basic 75L (20-gallon) HD marine water heater is designed for high-demand onboard hot-water systems that require rapid heating and long-lasting performance. Its heavy-duty 115V / 1200W immersion heater delivers significantly faster warm-up times compared to standard 750W units. As part of the Isotemp Basic series, it features a brushed stainless-steel tank and an internal layout that positions both the immersion heater and the engine-water heat exchanger at the lowest point of the tank to maximize heat transfer and ensure consistent temperature distribution.
Specially engineered cold- and hot-water ports minimize mixing inside the tank, increasing the effective volume of usable hot water. A built-in thermostat-controlled mixing valve stabilizes outlet temperature, providing safe and reliable operation even under fluctuating onboard thermal loads.Key Features
- 75-liter (20-gallon) high-capacity stainless-steel marine water heater.
- Heavy-duty 115V / 1200W immersion heating element for rapid heat-up.
- Integrated thermostat-controlled mixing valve.
- Engine-water heat exchanger for auxiliary heating capability.
- Low-mounted heater and exchanger for uniform temperature distribution.
- Optimized inlet/outlet port geometry reducing cold-water intrusion.
- Brushed stainless-steel exterior designed for marine corrosion resistance.
- Ideal for large yachts, trawlers and vessels with high hot-water demand.
Technical Specifications
Part Number 607583B000003 Model Basic 75L – Heavy Duty 1200W Version Capacity 75 L / 20 gallons Voltage / Power 115V AC / 1200W Tank Material Brushed stainless steel Dimensions Length: 48 in
Outside Diameter (OD): 23 inUnit Weight 65 lbs Volume (Cubic Feet) 20 Special Instructions Supplied with thermostat-controlled mixing valve
Included in the Package
- Isotemp Basic 75L stainless-steel water heater
- 115V / 1200W heavy-duty immersion heating element
- Engine-water heat exchanger connections
- Thermostat-controlled mixing valve
- Installation and safety documentation
The Isotemp Basic 75L HD model delivers fast heating performance, high hot-water output and robust stainless-steel construction, making it an excellent choice for large vessels and demanding marine hot-water systems.
Documents
Isotemp Basic Slim Water Heater Spare Parts List Size: 798,6 KbIsotemp Basic Slim Water Heater Manual Size: 6,6 Mb -
