ID
1300299
$ 1,990.77
1-2 weeks delivery time
-
+
The Isotherm Cruise CR49 Classic ITC 12/24V Right-Hinged Marine Refrigerator (49L) is a compact and efficient fridge featuring the Intelligent Temperature Control (ITC) system for optimized compressor operation. It operates on 12/24V DC, powered by a Secop BD35F fan-cooled compressor, and includes a 4L freezer compartment (-6°C). With a 49-liter gross capacity, 523 x 386 x 450 mm dimensions, and 16.2 kg weight, it consumes only 340 Wh/24h (at 12V) under ISO 15502:2005 standards. The built-in ITC system ensures improved cooling performance and reduced energy usage.
- Description
- Ask a Question
-

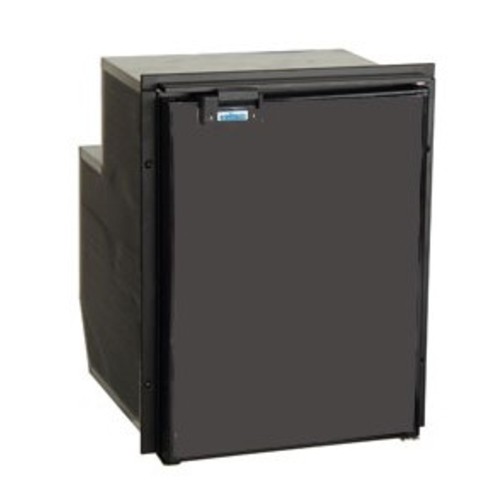

Isotherm Cruise CR49 Classic ITC 12/24V RH Marine Refrigerator
The Isotherm Cruise CR49 Classic ITC is a high-performance marine refrigerator equipped with the Intelligent Temperature Control (ITC) system, which optimizes compressor efficiency for reduced power consumption and enhanced cooling performance. This model is ideal for yachts, cruisers, and motorboats where reliability and energy management are key.
Technical Specifications
Model Isotherm C049RBABG11161AA Type Cruise CR49 Classic ITC Power Supply 12/24V DC Compressor Secop (Danfoss) BD35F, fan-cooled Temperature Control Integrated ITC (Intelligent Temperature Control) Gross Volume 49 L Freezer Volume 4 L (-6°C) Power Consumption 340 Wh/24h (at 12V, +5°C internal, +25°C ambient) Dimensions (H x W x D) 523 x 386 x 450 mm Door Thickness 40 mm Weight 16.2 kg Door Hinge Right-hand Certifications ISO 15502:2005, EN153:2006, EN60335-1
Key Features
- 49L total capacity with 4L freezer compartment (-6°C).
- Built-in Intelligent Temperature Control (ITC) system for optimal energy use.
- Efficient and quiet Secop BD35F compressor with fan cooling.
- Right-hinged door for flexible installation.
- Low energy consumption: 340 Wh/24h at 12V (ISO-compliant).
- Optional Smart Energy Control (SEC) and AC/DC conversion kit available separately.
- Ideal for marine installations where efficiency and reliability are essential.
Installation Guidelines
- Maintain a clearance of at least 20 mm on each side and 50 mm above the refrigerator.
- Dimensional tolerance: -2 / +4 mm (including refrigerator feet).
- Optional AC/DC kit increases overall installation depth.
- Refer to the installation manual for electrical and mounting details.
Energy Efficiency
Equipped with the Isotherm Intelligent Temperature Control (ITC) system, the Cruise CR49 Classic ITC automatically adjusts compressor speed and cooling cycles for reduced power consumption and extended compressor life. Optional Smart Energy Control (SEC) can further enhance energy savings by up to 50%.
Documents
Isotherm Cruise 49 Classic Manual Size: 5,3 Mb -
