ID
1300300
$ 1,990.77
1-2 weeks delivery time
-
+
The Isotherm Cruise CR49 Classic ITC+ 12/24V Right-Hinged Marine Refrigerator (49L) is an advanced version of the CR49 Classic, featuring the upgraded ITC+ (Intelligent Temperature Control Plus) system for maximum cooling efficiency and power optimization. Operating on 12/24V DC, it uses a Secop BD35F fan-cooled compressor, includes a 4L freezer compartment (-6°C), and provides a 49-liter total capacity. With 523 x 386 x 450 mm dimensions and a 16.2 kg weight, it consumes only 340 Wh/24h (at 12V).
- Description
- Ask a Question
-

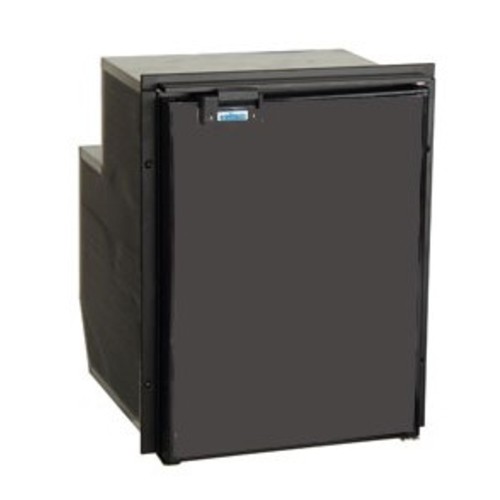

Isotherm Cruise CR49 Classic ITC+ 12/24V RH Marine Refrigerator
The Isotherm Cruise CR49 Classic ITC+ represents the most advanced evolution of the CR49 Classic line, equipped with the next-generation ITC+ Intelligent Temperature Control system. This innovative control module optimizes compressor speed and cooling cycles in real time, reducing power consumption while maintaining stable internal temperatures. Designed for marine use, it delivers quiet, efficient performance in compact installations.
Technical Specifications
Model Isotherm C049RBABG11171AA Type Cruise CR49 Classic ITC+ Power Supply 12/24V DC Compressor Secop (Danfoss) BD35F, fan-cooled Temperature Control Integrated ITC+ (Intelligent Temperature Control Plus) Gross Volume 49 L Freezer Volume 4 L (-6°C) Power Consumption 340 Wh/24h (at 12V, +5°C internal, +25°C ambient) Dimensions (H x W x D) 523 x 386 x 450 mm Door Thickness 40 mm Weight 16.2 kg Door Hinge Right-hand Certifications ISO 15502:2005, EN153:2006, EN60335-1
Key Features
- 49L total capacity with 4L freezer compartment (-6°C).
- Equipped with the latest ITC+ Intelligent Temperature Control system for advanced efficiency.
- Efficient Secop BD35F compressor with fan cooling and low noise operation.
- Right-hinged door for flexible marine installations.
- Compact size: 523 x 386 x 450 mm, ideal for smaller galleys.
- Low energy consumption: 340 Wh/24h at 12V (ISO 15502 compliant).
- Optional Smart Energy Control (SEC) available separately to reduce power use by up to 50%.
- Optional AC/DC conversion kit available (increases installation depth).
Installation Guidelines
- Maintain at least 20 mm side clearance and 50 mm top clearance for ventilation.
- Dimensional tolerance: -2 / +4 mm (including refrigerator feet).
- Optional AC/DC kit increases total installation depth.
- Refer to the installation manual for mounting and electrical setup.
Energy Efficiency
The integrated ITC+ Intelligent Temperature Control system continuously monitors operating conditions, adjusting compressor output to optimize performance and minimize energy consumption. When combined with the optional Smart Energy Control (SEC), total power savings of up to 50% are achievable — making this refrigerator a perfect solution for energy-conscious boat owners.
Documents
Isotherm Cruise 49 Classic Manual Size: 5,3 Mb -
