The Isotherm Cruise CR49 Classic Teak 12/24V Left-Hinged Marine Refrigerator (49L) combines elegant teak wood styling with reliable marine-grade cooling technology. Operating on 12/24V DC, it uses a Secop BD35F fan-cooled compressor and offers a 4L freezer compartment (-6°C) within its 49-liter total capacity. With dimensions of 523 x 386 x 450 mm, 16.2 kg weight, and 40 mm door thickness, it delivers low energy consumption of 340 Wh/24h (at 12V) under ISO 15502:2005 standards.
- Description
- Ask a Question
-
Isotherm Cruise CR49 Classic Teak 12/24V LH Marine Refrigerator

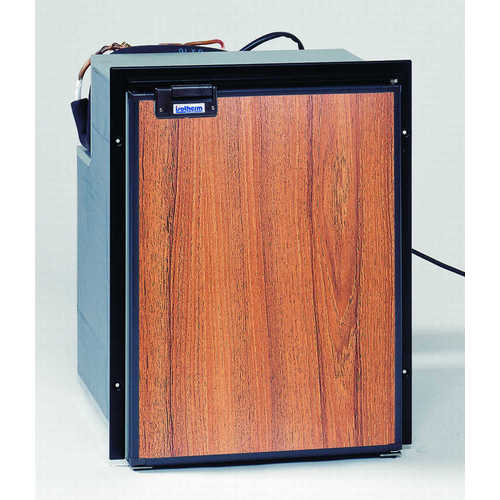

The Isotherm Cruise CR49 Classic Teak offers a perfect blend of style and practicality, featuring a beautiful teak wood front panel for a refined marine appearance. This left-hinged model is compact yet powerful, built with the same reliable Secop compressor technology used throughout the Isotherm range, ensuring dependable cooling performance in all marine environments.
Technical Specifications
Model Isotherm C049LBABT11111AA (ex.1049BA1DD0041) Type Cruise CR49 Classic Teak Power Supply 12/24V DC Compressor Secop (Danfoss) BD35F, fan-cooled Gross Volume 49 L Freezer Volume 4 L (-6°C) Power Consumption 340 Wh/24h (at 12V, +5°C internal, +25°C ambient) Dimensions (H x W x D) 523 x 386 x 450 mm Door Thickness 40 mm Weight 16.2 kg Door Hinge Left-hand Front Panel Teak wood design Certifications ISO 15502:2005, EN153:2006, EN60335-1
Features
- Elegant teak wood front panel for a premium marine appearance.
- Compact 49L total capacity with a 4L freezer compartment (-6°C).
- Operates on 12/24V DC with low energy consumption (340 Wh/24h at 12V).
- Equipped with Smart Energy Control (SEC) and Isotherm Temperature Control (ITC) for optimized efficiency.
- Powered by a reliable Secop BD35F compressor with quiet, fan-cooled operation.
- Optional AC/DC conversion kit available (increases installation depth).
- Ideal for integration into teak-finished yacht interiors or classic wooden boats.
Installation Guidelines
- Maintain a minimum clearance of 20 mm on both sides and 50 mm above the unit for ventilation.
- Dimensional tolerance: -2 / +4 mm (including refrigerator feet).
- Optional AC/DC kit increases total installation depth.
- Refer to the user manual for detailed installation and electrical connection instructions.
Energy Efficiency
The CR49 Classic Teak is compatible with the Isotherm Smart Energy Control Kit, which can reduce power consumption by up to 50%. This makes it an excellent choice for extended cruising or battery-conscious operations.
Documents
Isotherm Cruise 49 Classic Manual Size: 5,3 Mb -
