ID
1303288
$ 1,324.39
1-2 weeks delivery time
-
+
The Isotherm Cruise CR49 Classic 12/24V Right-Hinged Marine Refrigerator (49L) is a compact and efficient fridge designed for boats and yachts. It operates on 12/24V DC with a Secop BD35F fan-cooled compressor for quiet and reliable performance. The unit features a 4L freezer compartment (-6°C) and a total capacity of 49 liters, measuring 523 x 386 x 450 mm and weighing 16.2 kg. Power consumption is 340 Wh/24h (at 12V) under ISO 15502:2005 standards. Optional accessories such as Smart Energy Control (SEC) and Isotherm Temperature Control (ITC) can be added to improve efficiency and performance.
- Description
- Ask a Question
-

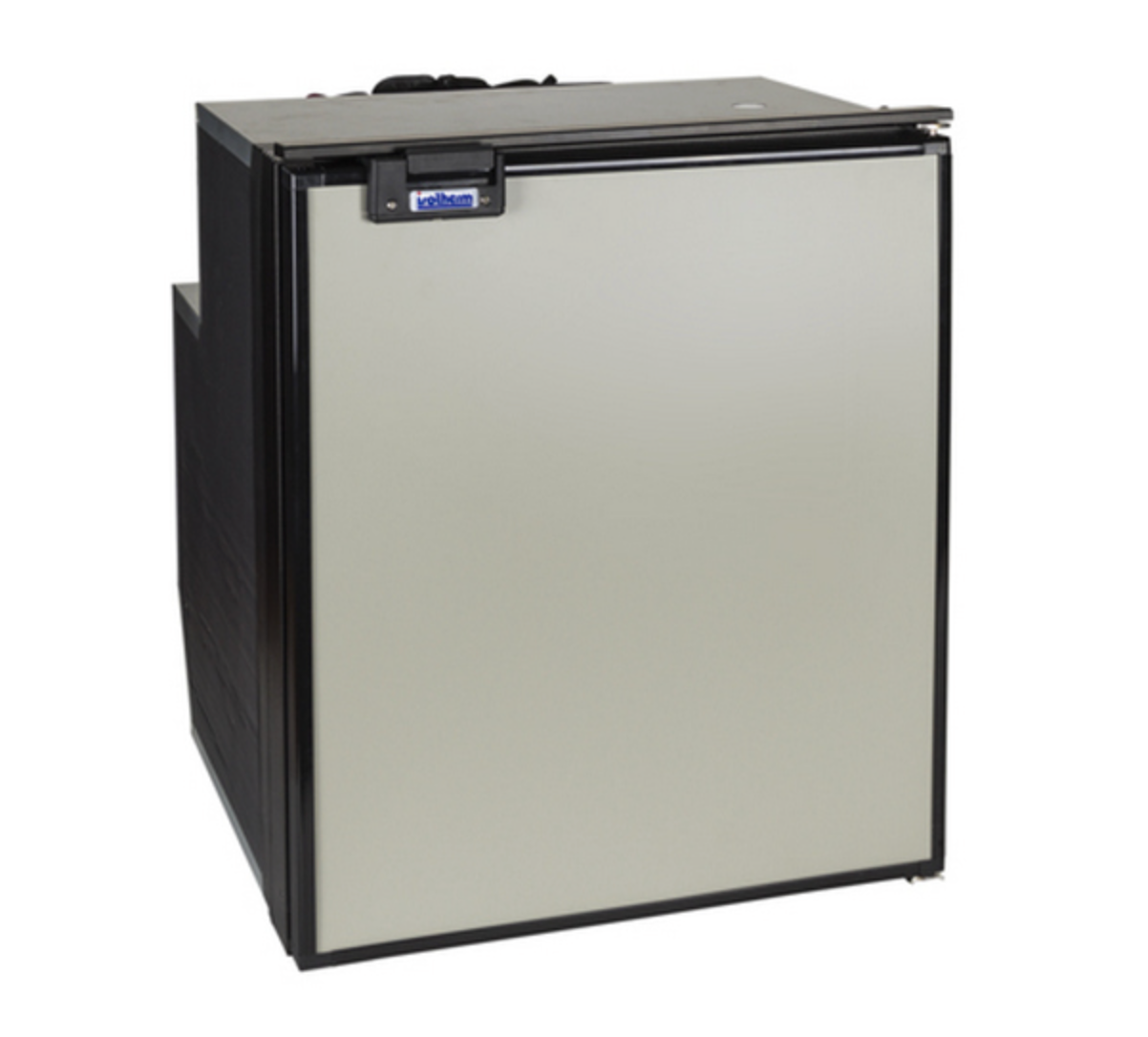

Isotherm Cruise CR49 Classic 12/24V RH Marine Refrigerator
The Isotherm Cruise CR49 Classic is a compact, durable marine refrigerator designed for efficient onboard cooling. This right-hinged model provides reliable performance with a low-noise compressor, making it ideal for yachts, sailboats, and motorboats. Optional energy management accessories allow enhanced efficiency for extended cruising.
Technical Specifications
Model Isotherm C049RBABG11111AA (ex.1049BA1CA0000 / SGB00002AA) Type Cruise CR49 Classic Power Supply 12/24V DC Compressor Secop (Danfoss) BD35F, fan-cooled Gross Volume 49 L Freezer Volume 4 L (-6°C) Power Consumption 340 Wh/24h (at 12V, +5°C internal, +25°C ambient) Dimensions (H x W x D) 523 x 386 x 450 mm Door Thickness 40 mm Weight 16.2 kg Door Hinge Right-hand Certifications ISO 15502:2005, EN153:2006, EN60335-1
Key Features

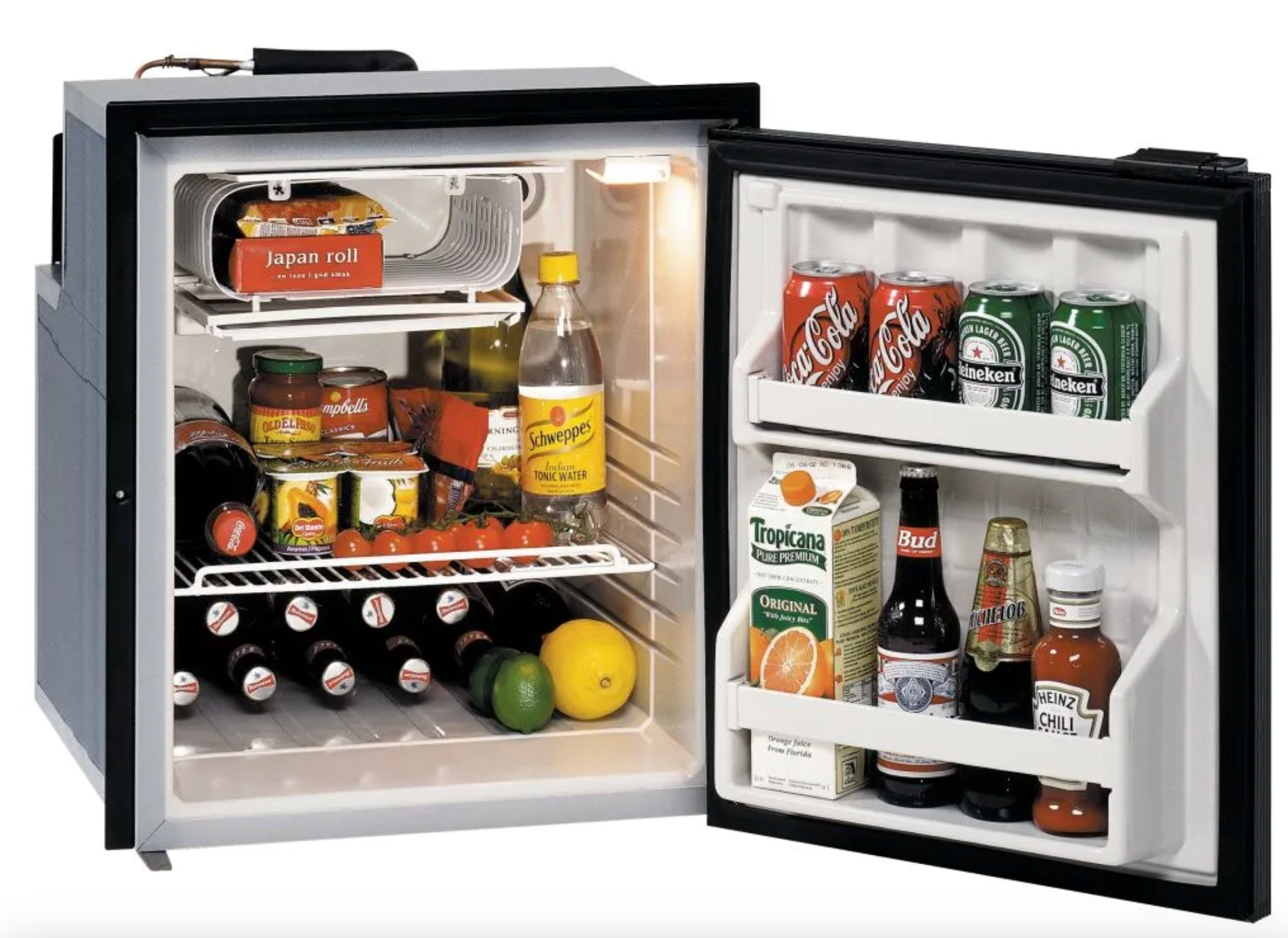

- Compact 49L marine refrigerator with 4L freezer compartment (-6°C).
- Right-hinged door for flexible galley installation.
- Efficient Secop BD35F compressor ensures quiet and reliable operation.
- Low energy consumption: 340 Wh/24h at 12V (ISO conditions).
- Optional Smart Energy Control (SEC) and Isotherm Temperature Control (ITC) available separately for improved energy management.
- Optional AC/DC conversion kit available (increases installation depth).
- Ideal for sailboats, cruisers, and motor yachts.
Installation Guidelines
- Maintain minimum clearances: 20 mm on each side and 50 mm above the unit.
- Dimensional tolerance: -2 / +4 mm (including refrigerator feet).
- Optional AC/DC kit increases overall installation depth.
- Refer to the installation manual for electrical and mounting instructions.
Energy Efficiency
The Cruise CR49 Classic is compatible with Isotherm Smart Energy Control (SEC) and Isotherm Temperature Control (ITC) systems, which can be purchased separately. These optional accessories help reduce power consumption by up to 50%, extending battery life and optimizing performance during extended voyages.
Documents
Isotherm Cruise 49 Classic Manual Size: 5,3 Mb -
