ID
1244833
$ 1,617.07
1-2 weeks delivery time
-
+
The Isotherm Cruise CR49 Elegance Silver 12/24V Left-Hinged Marine Refrigerator (49L) features a refined silver door design and compact build, ideal for galleys and cabins. It includes a Secop BD35F compressor, a 4L freezer compartment (-6°C) with a magnetic steel evaporator door, and a 1.75 cu. ft. total capacity. Dimensions are 525 x 380 x 452 mm with a weight of 17.2 kg, and power consumption is only 265 Wh/24h (at 12V). The unit includes a three-sided flange for surface (proud) mounting and supports Smart Energy Control (SEC) and Isotherm Temperature Control (ITC) systems for enhanced efficiency.
- Description
- Ask a Question
-

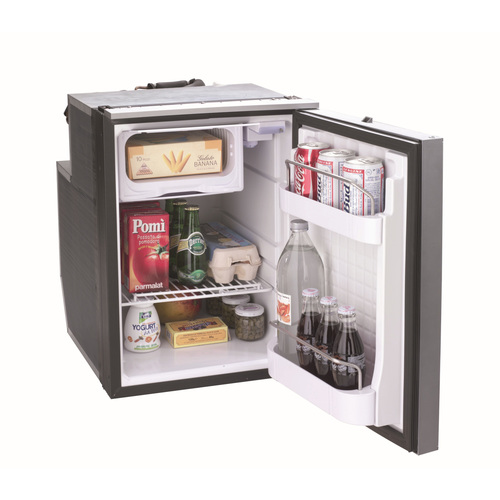

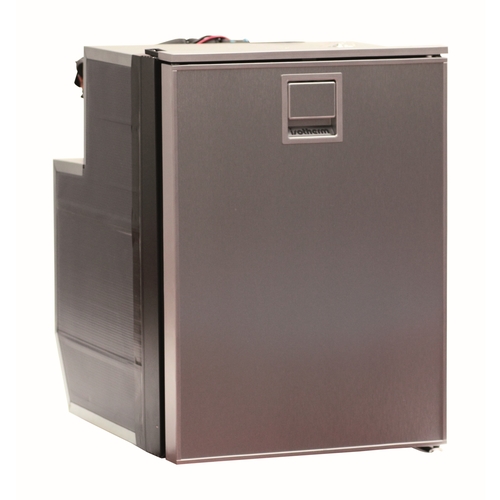

Isotherm Cruise CR49 Elegance Silver 12/24V LH Marine Refrigerator
The Isotherm Cruise CR49 Elegance Silver is a compact and stylish marine refrigerator belonging to the Elegance line, offering exceptional performance and a modern silver finish. Designed for marine environments, it features efficient cooling, a built-in freezer, and a quiet compressor system for comfort onboard.
Technical Specifications
Model Isotherm C049LSAAS11111AA (CR49 EL) Type Cruise CR49 Elegance Silver Power Supply 12/24V DC (optional 230V AC with AC/DC kit) Compressor Secop (Danfoss) BD35F, fan-cooled Gross Volume 49 L (1.75 cu. ft.) Freezer Volume 4 L (-6°C) with magnetic steel evaporator door Power Consumption 265 Wh/24h (at 12V, +5°C internal, +25°C ambient) Dimensions (H x W x D) 525 x 380 x 452 mm (add 50 mm for flush door installation) Weight 17.2 kg (45 lbs) Door Hinge Left-hand Finish Silver door (Elegance Line design) Mounting Frame 3-sided flange for proud mounting Certifications ISO 15502:2005, EN153:2006, EN60335-1
Key Features
- Compact 49L refrigerator with 4L freezer compartment (-6°C).
- Elegant silver door design for modern marine interiors.
- Powered by a Secop BD35F compressor for low-noise and reliable cooling.
- Features adjustable shelf and two retainers inside the door for flexible storage.
- Includes a three-sided proud-mount flange for easy installation.
- Optional AC/DC kit for dual-voltage operation (12/24V DC and 230V AC).
- Energy-efficient design with Smart Energy Control (SEC) and Isotherm Temperature Control (ITC).
Installation Guidelines
- Maintain a clearance of at least 20 mm on each side and 50 mm above the unit for ventilation.
- Dimensional tolerance: -2 / +4 mm (including refrigerator feet).
- Add 50 mm depth for flush door installations.
- Refer to the installation manual for mounting and electrical details.
Energy Efficiency
The Cruise CR49 Elegance Silver supports the Isotherm Smart Energy Control Kit, which can reduce power consumption by up to 50%, extending battery life and improving efficiency during extended voyages.
Documents
Isotherm Cruise CR49 Elegance Manual Size: 5,3 MbIsotherm Cruise CR49 Elegance Spare Parts List Size: 2,2 Mb -
