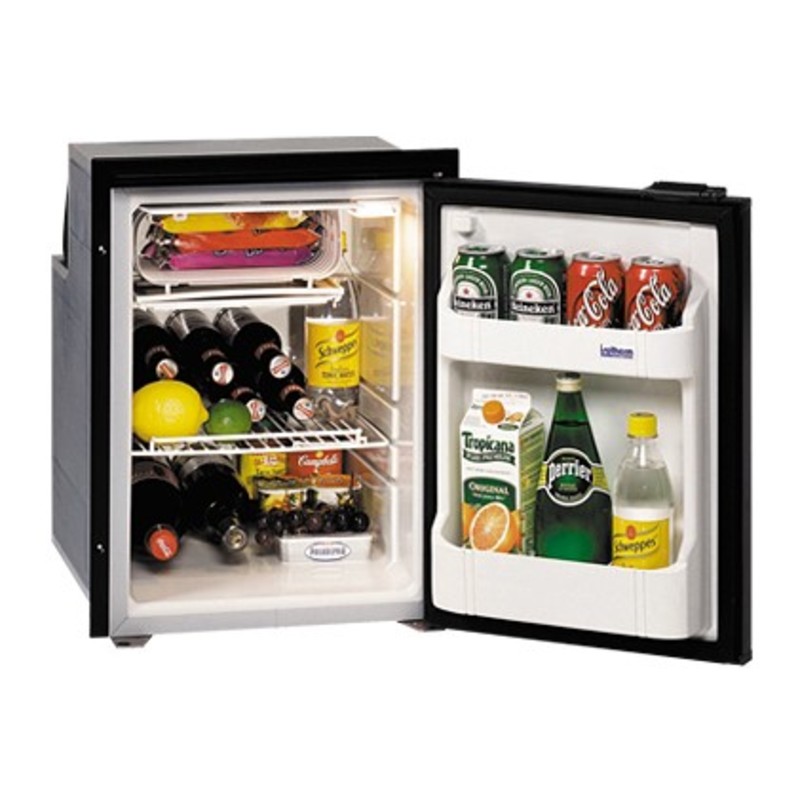

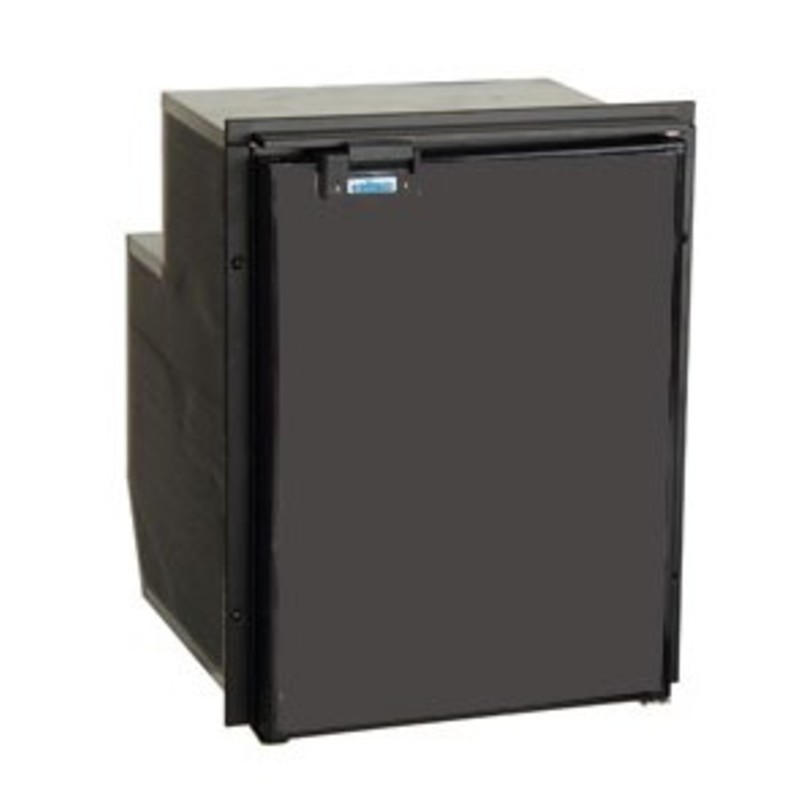

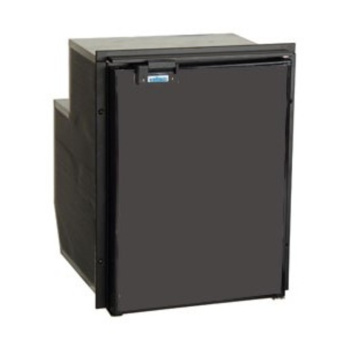

The Isotherm Cruise CR49 Classic 12/24V Left-Hinged Marine Refrigerator (49L) is a compact and efficient fridge designed for boats and yachts. It operates on 12/24V DC, powered by a Secop BD35F fan-cooled compressor, offering a 4L freezer compartment (-6°C) and total capacity of 49 liters. Measuring 523 x 386 x 450 mm with a 40 mm door thickness and 16.2 kg weight, it consumes only 340 Wh/24h at 12V under ISO 15502:2005 standards.
- Description
- Ask a Question
-
Isotherm Cruise CR49 Classic 12/24V LH Marine Refrigerator
The Isotherm Cruise CR49 Classic is a reliable and compact marine refrigerator built for efficient cooling performance in confined galley spaces. It features a left-hand door hinge, a durable stainless-steel design, and low energy consumption, making it ideal for yachts, sailboats, and motorboats.
Technical Specifications
Model Isotherm C049LBABG11111AA (ex.1049BA1DA0000) Type Cruise CR49 Classic Power Supply 12/24V DC Compressor Secop (Danfoss) BD35F, fan-cooled Gross Volume 49 L Freezer Volume 4 L (-6°C) Power Consumption 340 Wh/24h (at 12V, +5°C internal, +25°C ambient) Dimensions (H x W x D) 523 x 386 x 450 mm Door Thickness 40 mm Weight 16.2 kg Door Hinge Left-hand Freezer Temperature -6°C Certifications ISO 15502:2005, EN153:2006, EN60335-1
Features
- Compact 49L refrigerator with 4L freezer compartment (-6°C).
- Powered by a Secop BD35F fan-cooled compressor for quiet and efficient operation.
- Left-hand hinged door for flexible installation layouts.
- Integrated Smart Energy Control (SEC) and Isotherm Temperature Control (ITC) systems.
- Optional AC/DC conversion kit available (increases installation depth).
- Complies with international marine safety and energy efficiency standards.
- Ideal for sailboats, motor yachts, and compact galleys.
Installation Guidelines
- Allow clearance of at least 20 mm on both sides and 50 mm above the unit for ventilation.
- Dimensional tolerances: -2 / +4 mm (including feet).
- Optional AC/DC kit increases total installation depth.
- Refer to the installation manual for detailed mounting and electrical connection instructions.
Energy Efficiency
The Cruise CR49 Classic is compatible with the optional Isotherm Smart Energy Control Kit, which can reduce energy consumption by up to 50%. This makes it ideal for long-term cruising and battery-saving installations.
Documents
Isotherm Cruise 49 Classic Manual Size: 5,3 Mb -
