The VDO ViewLine fresh water level gauge A2C59514097 is a marine dashboard instrument for reliable fresh water tank monitoring, reading a 3-180 Ohm resistive signal and displaying a clear 0 to 1/2 to 1/1 level scale. Built for clean integration into a 52 mm panel cutout, it supports 8-32 V DC systems, uses an 8-pin MQS connector, and adds confidence underway with protective electronics and a red warning LED in a sleek black ViewLine design.
- Description
- Ask a Question
-

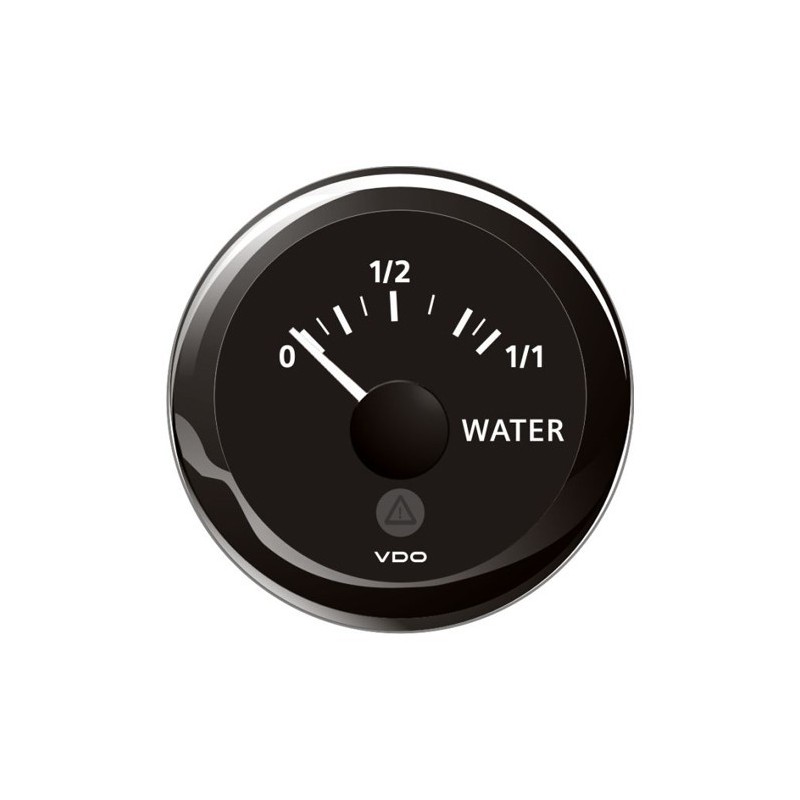

ViewLine Fresh Water Tank Level Gauge, Black 52 mm
The VDO A2C59514097 is a ViewLine series fresh water level gauge designed to keep your vessels water supply easy to read at a glance. Using a 3-180 Ohm resistive input, it displays the tank level on a simple 0 - 1/2 - 1/1 scale and integrates neatly into helm and cabin panels with a compact 52 mm installation size.
Compatibility
- Fresh water tank level systems using a 3 - 180 Ohm resistive sender (Veratron lever arm sender input)
- Vessel dashboards with a 52 mm (2 1/16 inch) panel hole cutout
- 8 - 32 V DC onboard electrical systems
- Installations using a Hirschmann 8-pin MQS connector interface
Product Details
- Brand: VDO
- Part Number: A2C59514097
- Series: ViewLine
- Component Type: Fresh water level gauge
- Color: Black dial
- Connection: Hirschmann 8-pin MQS connector
- Flush Mount Option: Optional kit A2C59510864
- Retail Package: Gauge, spinlock nut, interchangeable round black bezel, adapter cable with 8-pole MQS connector, rubber seal, QR code, safety instructions and installation manual
Features
- Accurate level indication for fresh water tanks on a clear 0 - 1/2 - 1/1 scale
- Designed for 3-180 Ohm resistive level sender signals for consistent readings
- Amber backlighting plus a white pointer backlight for excellent night visibility
- Red warning LED support for attention-getting status indication
- Built-in reverse polarity and short circuit protection for added onboard robustness
- Dual lens with anti-glare and anti-fog design for improved readability in marine conditions
Technical Specifications
Level Display Range 0 - 1/2 - 1/1 Signal Range 3 - 180 Ohm Accuracy < 3.6 angular degrees Operating Voltage 8 - 32 V DC Current Consumption < 140 mA including warning LED Protection Reverse polarity protection (5 minutes), short circuit protection (1 minute) Installation Hole Diameter 52 mm (2 1/16 inch) Outside Diameter 59 mm (2 1/3 inch) Installation Depth 50 mm Locking Height (Spinlock Nut) 0.5 mm - 20 mm Locking Height (Bracket) 2 mm - 15 mm (optional) Deflection Angle 90 Dial Illumination Amber LED backlight (605 nm) Pointer Illumination White LED backlight Warning LED Red (632 nm) Front Protection Class IP67 (IEC 60529) Rear Protection Class IP52 Operating Temperature -30 C to +80 C (plastic bezel) Certifications CE, DNV GL Mechanical Shock (Continuous) 25G - 6 ms - 1 Hz Mechanical Shock (Single) 100G - 11 ms Free Fall Test 1 meter - 3x Lens Dual anti-glare, anti-fog Bezel Round black, interchangeable (clip-on) Programming Veratron USB software kit EAN Code 7640178722941 HS Code 90261000 Weight 0.45 kg -
