ID
1369920
$ 86.39
1-2 weeks delivery time
-
+

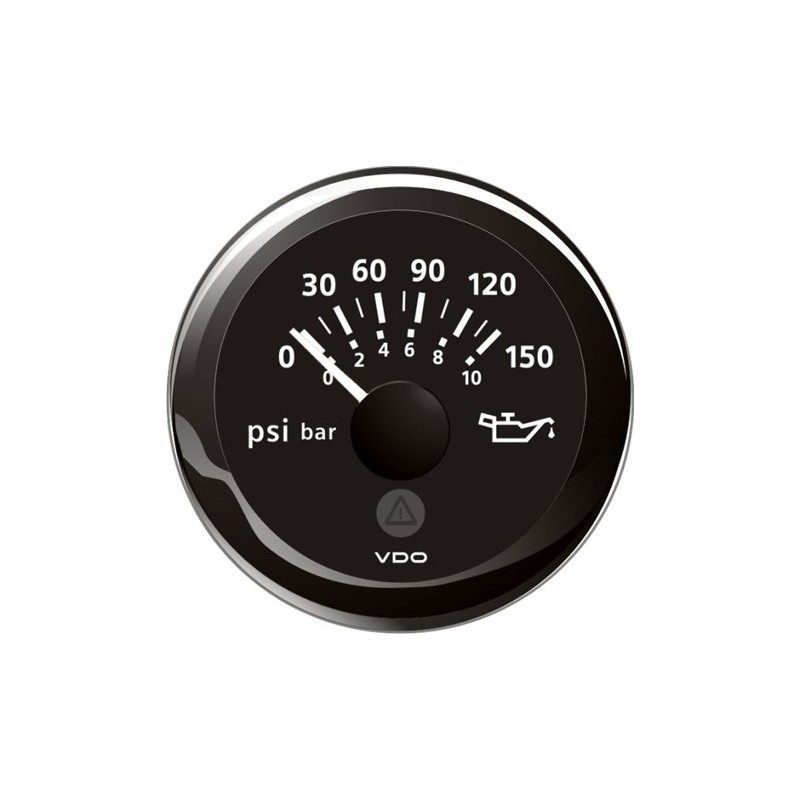

The VDO A2C59514118 ViewLine oil pressure gauge is a 52 mm black dashboard instrument built for accurate engine oil pressure monitoring up to 150 PSI as part of an engine instrumentation setup. With a clear, easy-to-read dual-scale dial and a dual anti-fog lens, it supports confident real-time pressure checks, while the integrated warning LED and robust protections help keep your engine monitoring reliable in demanding automotive or marine installations.
- Description
- Ask a Question
-
ViewLine Black 52 mm Engine Oil Pressure Instrument up to 150 PSI
The VDO A2C59514118 is a Veratron ViewLine engine oil pressure gauge designed for dependable engine monitoring on a clean, modern dashboard. With a 0 to 150 PSI upper scale (and a secondary 0 to 10 bar scale), it provides quick, readable feedback that helps you verify lubrication performance during start-up, cruising, and high-load operation. The black ViewLine styling, integrated illumination, and warning LED make it a practical upgrade for professional and enthusiast installations.
Compatibility
- Systems using a Veratron pressure sender signal input of 240 to 33.5 ohm
- 8 to 32 V DC electrical systems
- Panels with 52 mm (2 1/16 inch) installation hole diameter
- Optional flush-mount kit: A2C59510864
Product Details
- Brand: VDO (Veratron ViewLine series)
- Part Number: A2C59514118
- Component Type: Engine oil pressure gauge
- Primary Function: Engine oil pressure monitoring for dashboard instrumentation
- Color: Black
Technical Specifications
Pressure Range (Upper Scale) 0 to 150 PSI Pressure Range (Lower Scale) 0 to 10 bar Signal Input (Pressure Sender) 240 to 33.5 ohm Installation Hole Diameter 52 mm (2 1/16 inch) Outside Diameter 59 mm (2 1/3 inch) Installation Depth 50 mm Operating Voltage 8 to 32 V DC Current Consumption < 140 mA including warning LED Accuracy < 3.6 angular degrees Deflection Angle 90° Connector 8-pin MQS connector Front Protection Class IP67 (IEC 60529) Rear Protection Class IP52 Operating Temperature -30°C to +80°C (plastic bezel) Relative Humidity Maximum 95% Reverse Polarity Protection Yes (5 minutes) Short Circuit Protection Yes (1 minute) Dial Illumination Amber LED backlight (605 nm) Pointer Illumination White LED backlight Warning LED Red (632 nm) Lens Dual, anti-glare, anti-fog Bezel Round black, interchangeable (clip-on) Certifications CE; DNV GL HS Code 90262000 EAN 7640178727472 Weight 0.45 kg
Features
- Clear dual-scale oil pressure readout to support confident engine protection decisions
- Dual anti-fog lens for consistent visibility in humid and temperature-changing environments
- Integrated warning LED to help draw attention to critical pressure conditions
- Designed for modern installations with 52 mm mounting and an 8-pin MQS connector interface
- Rugged protection ratings that suit demanding vehicle or marine dashboards
Retail Package Contents
- Veratron ViewLine Black A2C59514118 engine oil pressure gauge
- Spinlock nut
- Round black interchangeable bezel
- Adapter cable with 8-pole MQS connector
- Rubber seal
- QR code
- Safety instructions and installation manual
- Pressure sender not included
-
