ID
1369918
$ 109.65
1-2 weeks delivery time
-
+

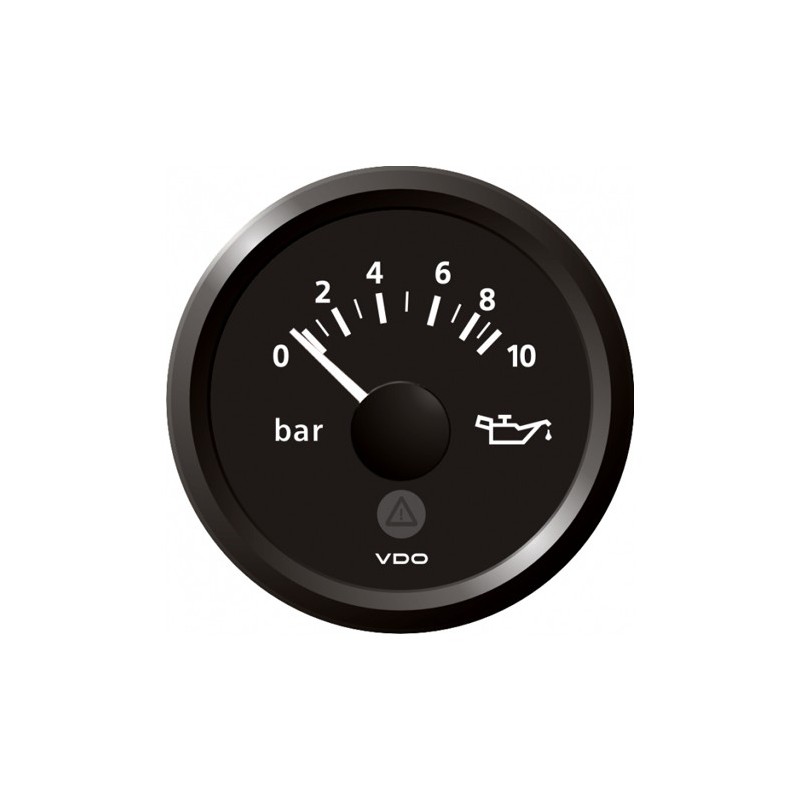

The VDO A2C59514114 ViewLine oil pressure gauge is a 52 mm black-dial dashboard instrument designed for dependable engine monitoring, displaying oil pressure from 0 to 10 bar at a glance. Built for the Veratron ViewLine system, it works with a 10–184 ohm pressure sender input and uses an 8-pin MQS connector for clean integration, while features like dual anti-fog lens performance, amber dial illumination, a red warning LED, and robust front sealing support confident operation in demanding automotive or marine helm environments.
- Description
- Ask a Question
-
ViewLine Black 52 mm Engine Oil Pressure Gauge 0 to 10 Bar
The VDO A2C59514114 is a Veratron ViewLine engine oil pressure gauge designed to give clear, stable pressure information where it matters most: at the dashboard or helm. With a 0 to 10 bar scale and a clean black dial in a 52 mm format, it supports quick decision-making for engine protection and maintenance, helping you spot low-pressure events before they become costly problems.
Compatibility
- Veratron Engine Monitoring
- Veratron ViewLine Marine
- Systems using an analog oil pressure sender signal of 10–184 ohm
- 8 to 32 V DC electrical systems
Product Details
- Brand: VDO (Veratron ViewLine series)
- Part Number: A2C59514114
- Instrument Type: Engine oil pressure gauge
- Signal Type: Analog
- Connector: Hirschmann 8-pin MQS connector
- Dial Color: Black
- Lens: Dual lens, anti-glare, anti-fog
- Bezel: Interchangeable triangular black
Features
- Clear oil pressure monitoring with a 0 to 10 bar display range
- Integrated red warning LED support for high-visibility alerts
- Amber LED dial illumination and white pointer backlight for night readability
- Sealed construction for harsh environments with IP67 front protection and IP52 rear protection
- Designed for straightforward installation using a central spinlock nut mounting method
Technical Specifications
Pressure Measurement Range 0 to 10 bar Sender Input 10 to 184 ohm Installation Hole Diameter 52 mm (2 1/16 inch) Outside Diameter 59 mm (2 1/3 inch) Installation Depth 50 mm Operating Voltage 8 to 32 V DC Current Consumption < 140 mA (including warning LED) Reverse Polarity Protection Yes (5 minutes) Short Circuit Protection Yes (1 minute) Deflection Angle 90° Accuracy < 3.6 angular degrees Front Protection Class IP67 (IEC 60529) Rear Protection Class IP52 Operating Temperature -30°C to +80°C (plastic bezel) Certifications CE; DNV GL EAN Code 7640178727441 Weight 0.45 kg
Retail Package Contents
- Engine oil pressure gauge
- Spinlock nut
- Interchangeable triangular black bezel
- Adapter cable with 8-pole MQS connector
- Rubber seal
- QR code
- Safety instructions and installation manual
-
