The VDO A2C59514117 ViewLine engine oil pressure gauge is a 52 mm black-dial instrument built for clear, dependable oil-pressure monitoring in engine instrumentation systems. With a 0–150 PSI (0–10 bar) scale, amber dial backlighting, a red warning LED, and a dual anti-glare, anti-fog lens, it delivers easy-to-read status at a glance. Designed for 8–32 V DC operation and using a 10–184 ohm pressure-sender input via an 8-pin MQS connector, it is a robust choice for demanding automotive environments and ViewLine Marine installations.
- Description
- Ask a Question
-

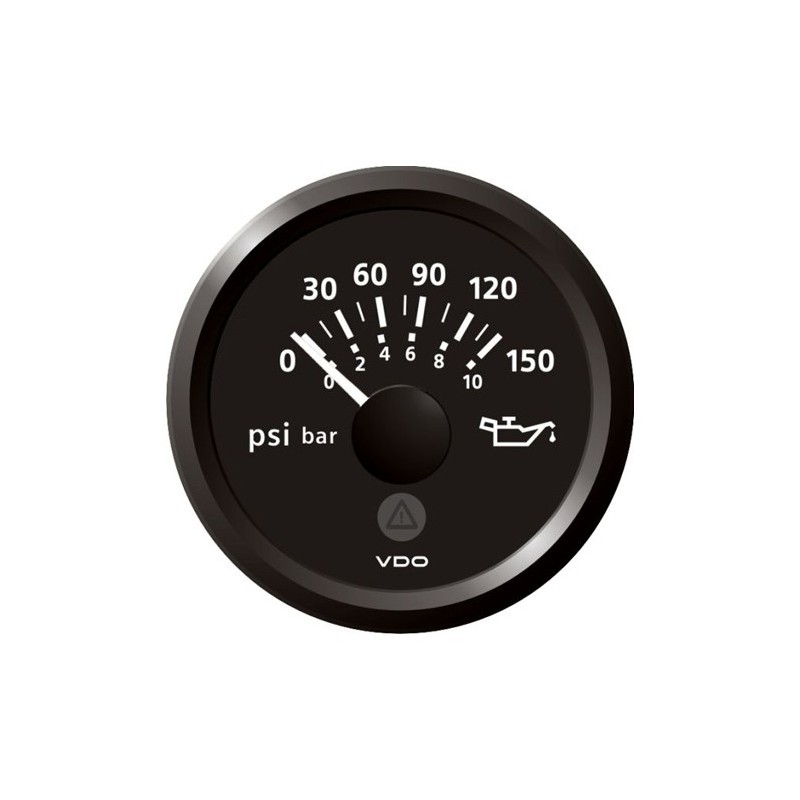

ViewLine Oil Pressure Instrument 150 PSI Black 52 mm
The VDO A2C59514117 is a Veratron ViewLine engine oil pressure gauge designed for reliable engine monitoring on a 52 mm dashboard cutout. It provides clear, accurate oil-pressure indication on a dual-scale dial (PSI and bar) and supports confident operation with integrated backlighting and a dedicated warning LED for quick attention when conditions change.
Compatibility
- ViewLine Marine installations
- Automotive engine monitoring systems
- 8–32 V DC electrical systems
- Pressure sender input: 10–184 ohm
Technical Specifications
Part Number A2C59514117 Series Veratron ViewLine Function Engine oil pressure Measurement Range 0 to 150 PSI Secondary Scale 0 to 10 bar Panel Cutout 52 mm (2 1/16 in) Outside Diameter 59 mm (2 1/3 in) Installation Depth 50 mm Operating Voltage 8 to 32 V DC Current Consumption < 140 mA (including warning LED) Input Signal Analog, 10 to 184 ohm Connection 8-pin MQS connector Accuracy < 3.6 angular degrees Dial Color Black Dial Illumination Amber LED backlight (605 nm) Pointer White LED backlight Warning Light Red LED (632 nm) Lens Dual, anti-glare, anti-fog Front Protection Class IP67 (IEC 60529) Rear Protection Class IP52 Operating Temperature -30°C to +80°C (plastic bezel) Certifications CE, DNV GL EAN 7640178727465 HS Code 90262000 Weight 0.45 kg
Product Details
- Brand: VDO
- Component Type: Engine oil pressure gauge
- Dashboard Fit: 52 mm instrument cutout with central spin-lock nut mounting
- Bezel: Interchangeable, black triangular (clip-on)
- Optional Flush-Mount Kit: A2C59510864
Features
- Dual-scale dial for quick reading in PSI and bar
- Dual lens design with anti-glare and anti-fog performance for improved visibility
- Red warning LED plus amber dial illumination to keep critical information readable day or night
- Designed for tough installations with IP67 front protection
- Works with a 10–184 ohm pressure sender input (pressure sender not included)
Retail Package Contents
- Veratron ViewLine Black A2C59514117 engine oil pressure gauge
- Spin-lock nut
- Interchangeable black triangular bezel
- Adapter cable with 8-pole MQS connector
- Rubber seal
- QR code
- Safety instructions and installation manual
-
