ID
1369917
$ 109.65
1-2 weeks delivery time
-
+

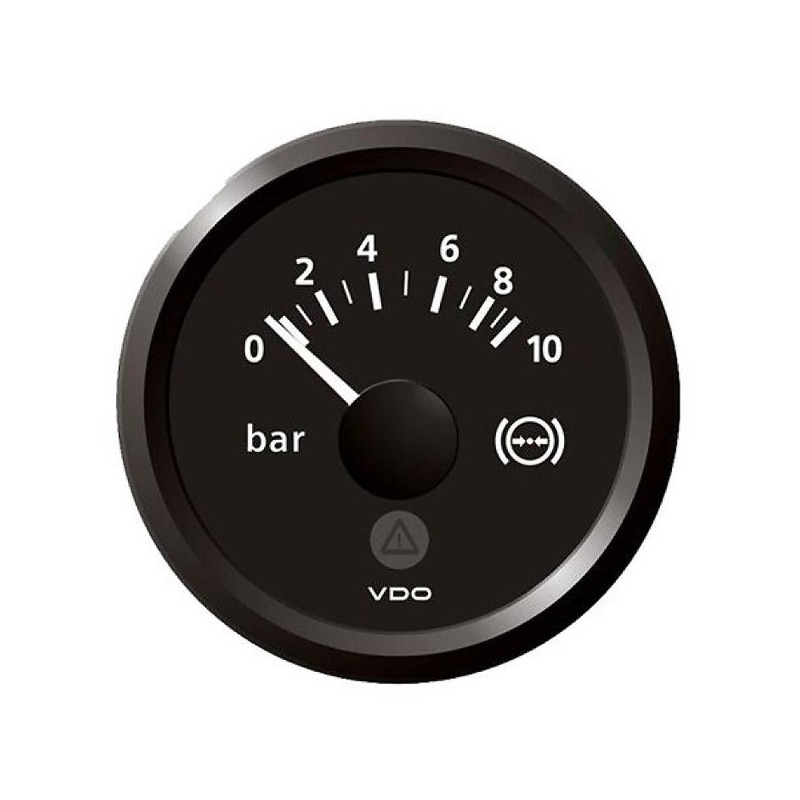

The VDO A2C59514104 ViewLine brake pressure gauge is a 52 mm black dashboard instrument that monitors brake system pressure in real time across a 0 to 10 bar range. Designed for dependable engine and system monitoring installations, it connects via an 8-pin MQS connector and uses a 10–184 ohm pressure sender input signal, while the dual anti-glare, anti-fog lens and integrated red warning LED help keep critical brake-pressure information clear and easy to read.
- Description
- Ask a Question
-
ViewLine Brake Pressure Dashboard Gauge 0 To 10 Bar, Black 52 mm
The VDO A2C59514104 from the Veratron ViewLine series is a brake pressure gauge built for clear, at-a-glance monitoring of braking system pressure. With a 52 mm panel cutout size and a clean black dial design, it integrates neatly into modern dashboards and supports confident operation by displaying pressure from 0 to 10 bar.
Compatibility
- Veratron ViewLine Marine instrument systems
- Brake pressure monitoring installations requiring a 52 mm gauge and 0–10 bar display range
- Systems using a 10–184 ohm brake pressure sender signal input
- 8–32 V DC electrical systems
Technical Specifications
Measurement Range 0 to 10 bar Dial Color Black Panel Hole Diameter 52 mm (2 1/16 inch) Outside Diameter 59 mm (2 1/3 inch) Installation Depth 50 mm Connection Hirschmann 8-pin MQS connector Sender Input Signal 10 to 184 ohm (pressure sender) Accuracy < 3.6 angular degrees Operating Voltage 8 to 32 V DC Current Consumption < 140 mA including warning LED Reverse Polarity Protection Yes, 5 minutes Short Circuit Protection Yes, 1 minute Deflection Angle 90° Dial Illumination Amber LED backlight (605 nm) Pointer Lighting White LED backlight Warning LED Red (632 nm) Lens Dual, anti-glare, anti-fog Bezel Triangular black, interchangeable Front Protection Class IP67 (IEC 60529) Rear Protection Class IP52 Operating Temperature -30°C to +80°C (plastic bezel) Certifications CE; DNV GL Weight 0.45 kg EAN 7640178727410 HS Code 90262000
Product Details
- Brand: VDO
- Part Number: A2C59514104
- Component Type: Brake pressure gauge
- Series: Veratron ViewLine
- Function: Brake pressure monitoring
Features
- Real-time brake pressure indication to support safer, more informed driving
- Dual anti-glare, anti-fog lens helps maintain readability in changing conditions
- Integrated red warning LED for attention-getting status indication
- Interchangeable bezel design for a clean, customizable dashboard finish
Box Contents
- Veratron ViewLine Black A2C59514104 brake pressure gauge
- Spinlock nut
- Triangular black bezel (interchangeable)
- Adapter cable with 8-pole MQS connector
- Rubber seal
- QR code
- Safety instructions and installation manual
- Pressure sender not included
-
