The VDO A2C5218494180 coolant temperature sensing unit provides an analog resistance signal (287.4–22.7 Ohm) across a +40°C to +120°C measuring range to support reliable coolant temperature monitoring in various automotive applications. Built with an M10 x 1 thread and a single-pole common-ground signal, it gives the instrument or control system stable temperature feedback, with no integrated warning contact.
- Description
- Ask a Question
-
VDO Coolant Temperature Sensing Unit 40°C to 120°C (M10 x 1)
The VDO A2C5218494180 is an analog coolant temperature sender designed to report temperature through a calibrated resistance curve (287.4–22.7 Ohm) over a +40°C to +120°C measuring range. Installed into the cooling circuit via its M10 x 1 threaded body, it provides consistent temperature feedback to instrumentation or vehicle electronics using a single-pole common-ground signal and is supplied without a warning contact.
Compatibility
- Various automotive applications
Product Details
- Brand: VDO
- Part Number: A2C5218494180
- Category: Temperature sensors
- Function: Coolant temperature
- Communication: Analog
- Sensor signal: Single-pole common ground
- Warning contact: None
- EAN Code: 4103590696649
- Weight: 0.05 kg
Technical Specifications

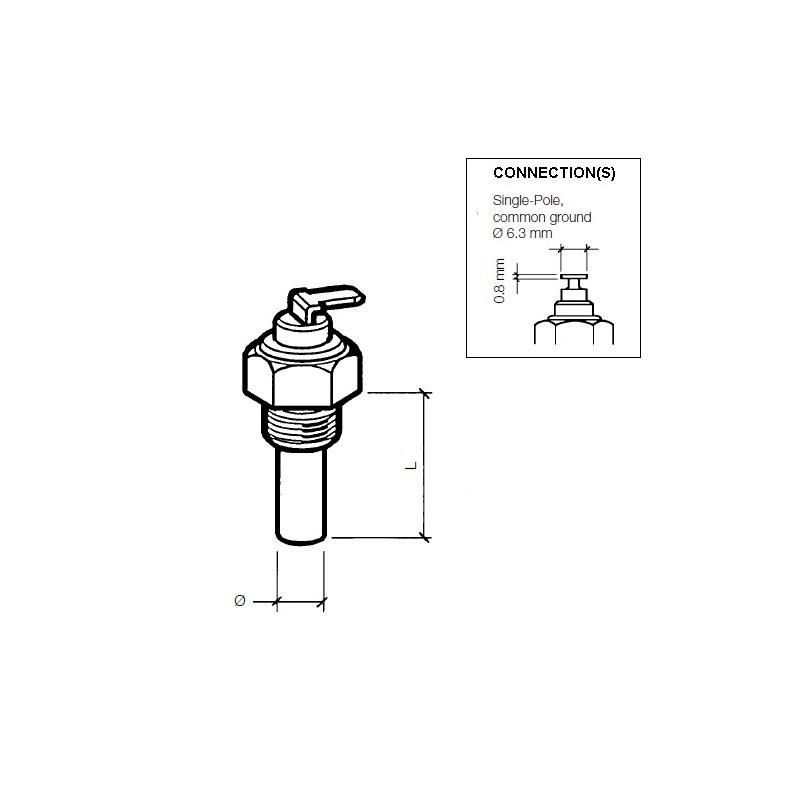

Temperature Measuring Range +40°C to +120°C Minimum to Maximum Operating Temperature -40°C to +150°C Thread M10 x 1 Sender Element Length Plus Thread (L) 10.5 mm Sensor Diameter 8.4 mm Tightening Torque 10 Nm Temperature Medium Coolant, water, air, engine oil, transmission oil, fuel Operating Voltage 6–24 V DC Resistance Range 287.4–22.7 Ohm Temperature Sensor Signal Single-pole common ground Temperature Sender Connector AMP male T-model 6.3 x 0.8 mm Type of Connection C Resistance at 100°C 38.47 Ohm ± 2.98 Ohm
Features
- Accurate coolant temperature feedback for gauges and vehicle electronics
- Analog resistance output matched to 287.4–22.7 Ohm sender curve
- M10 x 1 threaded fit supports secure installation in cooling-system ports
- Single-pole common-ground design for straightforward wiring in many vehicle harnesses
- Optional makepoint switch reference: VDO A2C59510886
-
